‘Universal’ design, UL Security listed
-
1/2" latch projection
-
Up to 15 lbs of preload pressure on strike keepers
-
Spacer plates included: 1/8" and 1/4"
-
Latch monitor included
-
Plug-in latch bolt monitor assembly included
-
Available in stainless steel and unique all-black finish
-
Non-handed, left or right
-
5 year warranty
| Latch Projection: |
1/2” or 3/4" with 1/8” or 1/4” Spacer Plates
|
| Voltage: |
12/24V AC/DC
|
| Current Draw: |
560mA @12V DC
280mA @24V DC
|
| Static Strength: |
1,500 lbs. (UL Verified)
|
| Dynamic Strength: |
70 ft-lbs.
|
| Preload: |
15 lbs.
|
| Endurance: |
1,000,000 Cycles (Factory Tested)
500,000 Cycles (UL Verified)
|
| Operation: |
AC Buzz, DC Silent
|
| Mode: |
Field Selectable Fail Safe or Fail Secure
|
| Duty: |
Continuous
|
| Latch Monitor: |
SPDT, 100mA @ 24V DC, Resistive
|
| Dimensions: |
9-3/16”H x 1-7/8”W x 9/16”D
(233.2mm x 48.1mm x 14mm)
|
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
 |

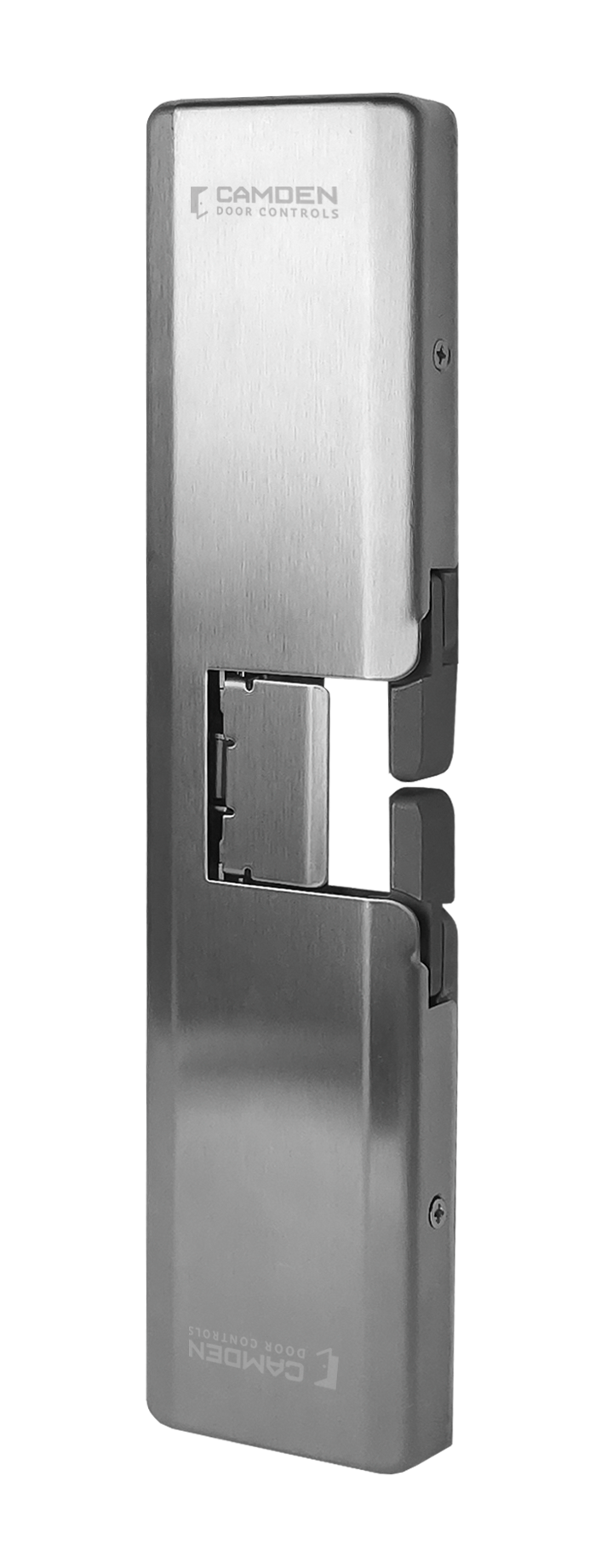

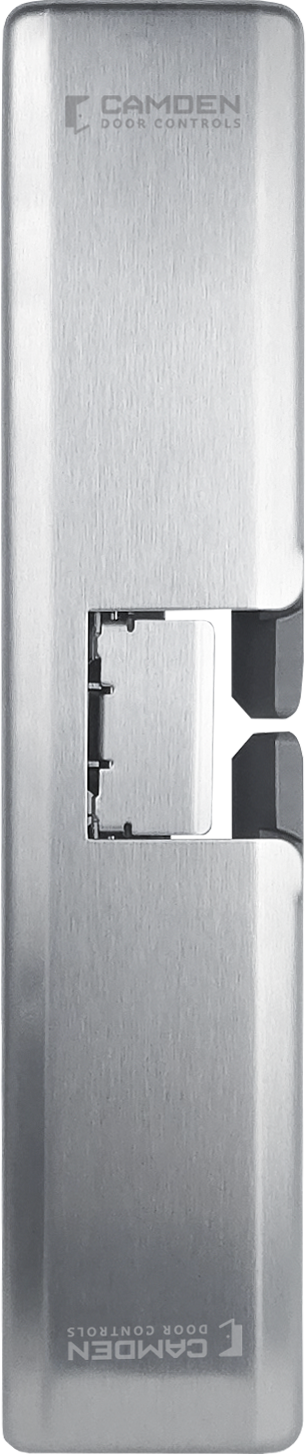

CX-EPD1299L |
1/2" Surface mount Grade 1 RIM strike with preload, brushed aluminum finish, 12/24V, AC/DC, fail safe/fail secure, with ‘plug-in’ latch monitor assembly & metal mounting jig
EDI Data, Approvals
|
|
1/2" Surface mount Grade 1 RIM strike with preload, brushed aluminum finish, 12/24V, AC/DC, fail safe/fail secure, with ‘plug-in’ latch monitor assembly & metal mounting jig
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 10"L x 2"W x 1.875"H
Weight: 5lbs.
UPC: 670454223371
Country of Origin: TW
|
|
|

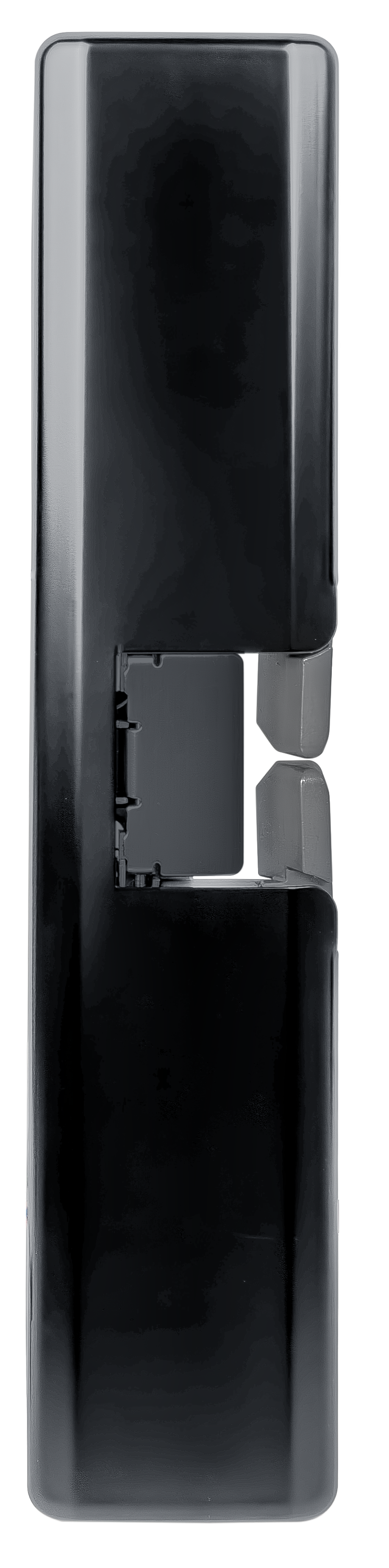

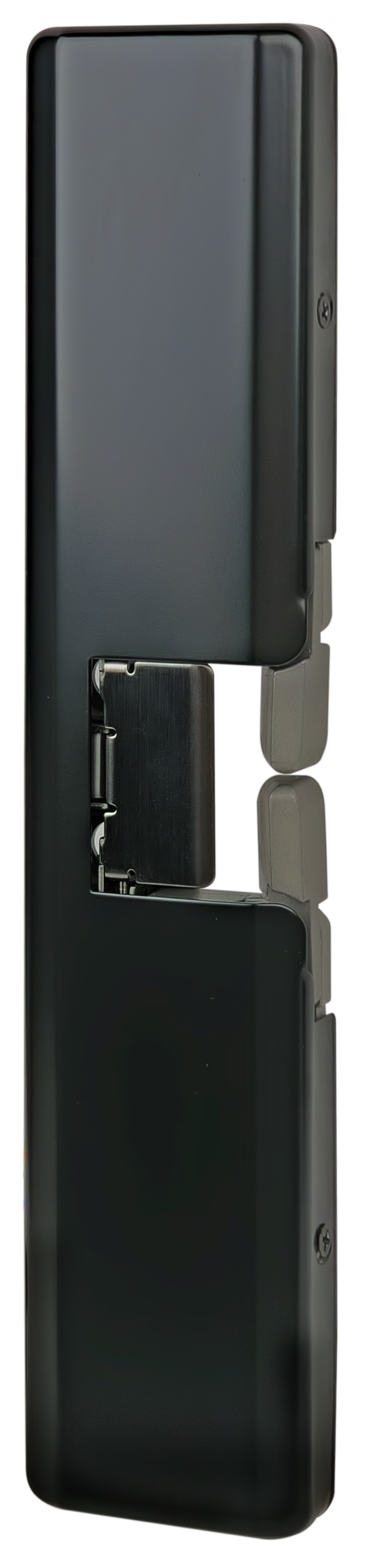

CX-EPD1299L-BK |
1/2" Surface mount Grade 1 RIM strike with preload, all-black finish, 12/24V, AC/DC, fail safe/fail secure, with ‘plug-in’ latch monitor assembly & metal mounting jig
EDI Data, Approvals
|
|
1/2" Surface mount Grade 1 RIM strike with preload, all-black finish, 12/24V, AC/DC, fail safe/fail secure, with ‘plug-in’ latch monitor assembly & metal mounting jig
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 10"L x 2"W x 1.875"H
Weight: 5lbs.
UPC: 670454223388
Country of Origin: TW
|
| |
Spacer Plates
click to expand section
|
|
Net Cost
|
|
|

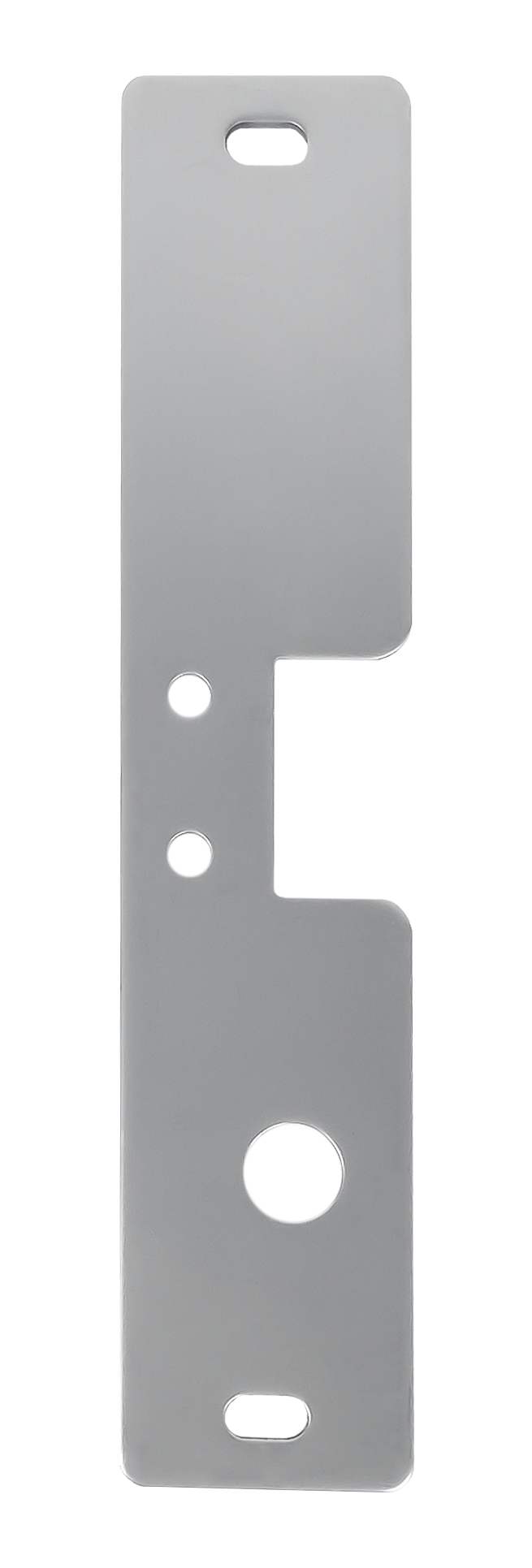

60-35E013 |
1/8" Spacer Plate for CX-EPD1299L Electric Strike
EDI Data, Approvals
|
|
1/8" Spacer Plate for CX-EPD1299L Electric Strike
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
|
|
|
60-35E015 |
1/4" Spacer Plate for CX-EPD1299L Electric Strike
EDI Data, Approvals
|
|
1/4" Spacer Plate for CX-EPD1299L Electric Strike
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
| |
|
Filler Plate
click to expand section
|
|
Net Cost
|
|
|

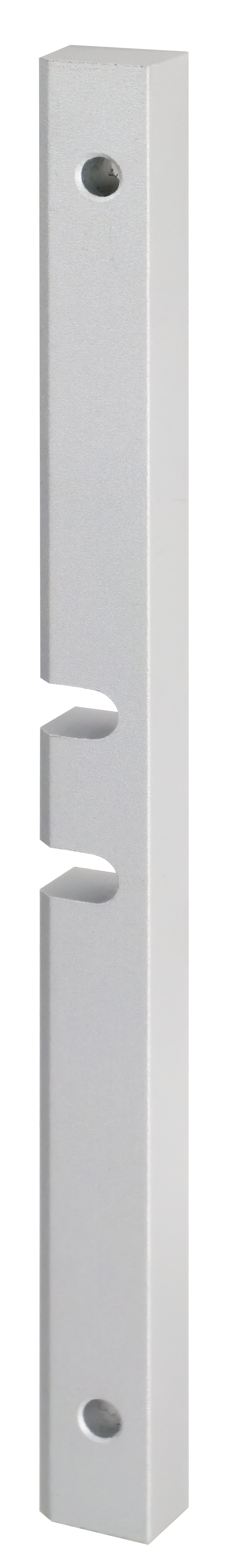

60-35E014 |
RIM Strike Filler Plate
EDI Data, Approvals
|
|
RIM Strike Filler Plate
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454230508
Country of Origin: TW
|
| |
|
Surface Box
click to expand section
|
|
Net Cost
|
|
|

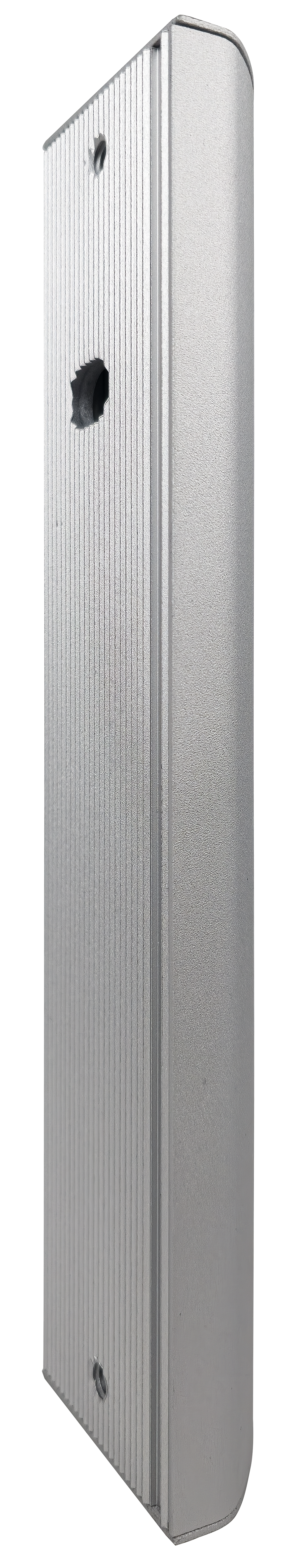

CX-RIM-SB |
Aluminum surface mounted adapter box for mounting EPD-1289L (or 1299L) on a double door
EDI Data, Approvals
|
|
Aluminum surface mounted adapter box for mounting EPD-1289L (or 1299L) on a double door
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 1.25"L x 1.96875"W x 9.1875"H
Weight: 1lbs.
UPC: 670454228758
Country of Origin: TW
|
| |
|
