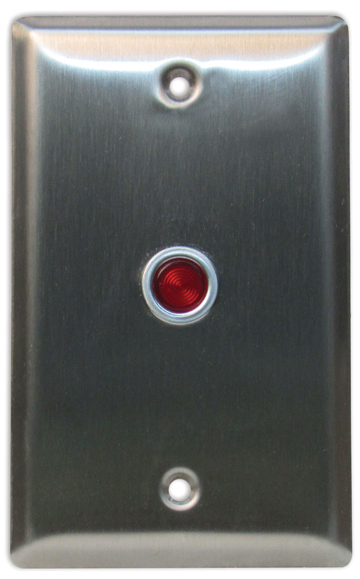

CX-LED1

CX-LED1

Camden CX-LED Series single gang plates clearly annunciate condition status of restrooms, meeting rooms or other monitored applications. Models offer heavy gauge brushed stainless steel faceplates with the option for 1 or 2 LEDs (1/2", 12.7mm) and a range of laser etched graphics.

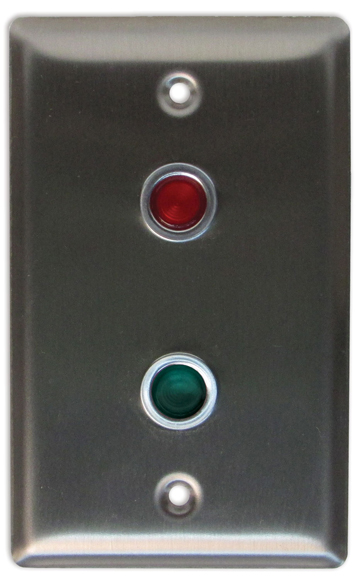

CX-LED2

FEATURES

SPECIFICATIONS

RESOURCES

Ideal for a wide range of low voltage signal applications
Super bright 1/2" LEDs with long service life
Single gang, heavy gauge, stainless steel faceplates

Voltage:	12/24 VDC
Current Draw:	7 mA @ 12 V, 17 mA @ 24 V (each LED)
Dimensions:	4-1/2" x 2-3/4" x 1-1/2" (114mm x 70mm x 38.1mm)

Spec Sheets
CX-LED1/5-LED2/57_Spec Sheet_R3	pdf	0.41	DOWNLOAD OPEN
Installation Manuals
CX-LED Series_Manual_R1	pdf	0.50	DOWNLOAD OPEN
High Resolution Images
CM-LED1-R	pjpeg	0.15	DOWNLOAD OPEN
CM-LED2-RG	pjpeg	0.15	DOWNLOAD OPEN

MODELS

Click to Select Configuration Options to Customize Switch Model

WIZARD

SELECT MODEL

WIZARD

SELECT MODEL

Model

click to expand section

Description

Net Cost

CX-LED1: CX-LED:Single Gang LED Plates - Annunciators

CX-LED1

Single gang, LED, blank, 12/28 VDC

EDI DATA, APPROVALS

Single gang, LED, blank, 12/28 VDC

EDI DATA
APPROVALS

Dimensions: 5"L x 3"W x 2"H

Weight: 0.35lbs.

UPC: N/A

Country of Origin: CA

CX-LED2: CX-LED:Single Gang LED Plates - Annunciators

CX-LED2

Single gang, 2 LEDs, blank, 12/28 VDC

EDI DATA, APPROVALS

Single gang, 2 LEDs, blank, 12/28 VDC

EDI DATA
APPROVALS

Dimensions: 5"L x 3"W x 2"H

Weight: 0.35lbs.

UPC: NA

Country of Origin: CA

OPTIONS & FINISHES

Click to expand section

WIZARD

SELECT OPTIONS

WIZARD

SELECT OPTIONS

WIZARD

SELECT MODEL ABOVE

WIZARD

SELECT OPTIONS

LED OPTIONS

FACEPLATE GRAPHIC OPTIONS

LED Options

Net Cost

CX-XXXXR

Add 'R' to model number for red LED, mounted in faceplate

CX-XXXXG

Add 'G' to model number for green LED, mounted in faceplate

CX-XXXXRG

Add 'RG' to model number for (1) red LED and (1) green LED, mounted in faceplate

Faceplate Graphic Options - CX-LED1

Net Cost

CX-xxx/50

Add /50 to model # for 'OCCUPIED'

CX-xxx/51

Add /51 to model # for 'OCCUPIED WHEN LIT'

CX-xxx/52

Add /52 to model # for 'DOOR LOCKED WHEN LIT'

CX-xxx/53

Add /53 to model # for 'ASSISTANCE REQUIRED'

CX-xxx54

Add /54 to model # for 'IN USE'

Faceplate Graphic Options - CX-LED2

Net Cost

CX-xxx/55

Add /55 to model # for 'OCCUPIED' / 'VACANT'

CX-xxx/56

Add /56 to model # for 'DOOR LOCKED / 'DOOR UNLOCKED

CX-xxx/57

Add /57 to model # for 'ARMED / DISARMED'

Order Support

Online Order Tracking

Contact Order Support

Find Local Camden Sales Rep

Shipping & Delivery

Installation Support

Product Manuals

Design Guides

UL. ETL. ROHS Certificates
