| CX-92S-06, 600 lbs. Surface Mount Double Door - Basic |

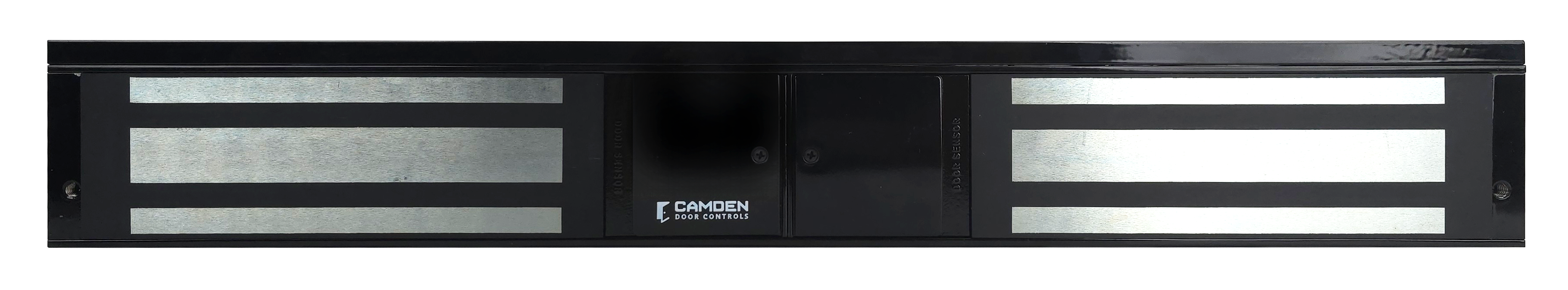

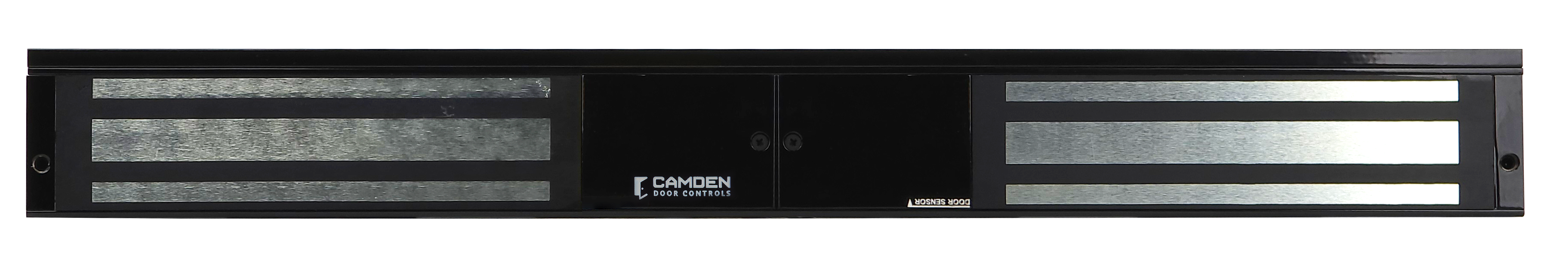

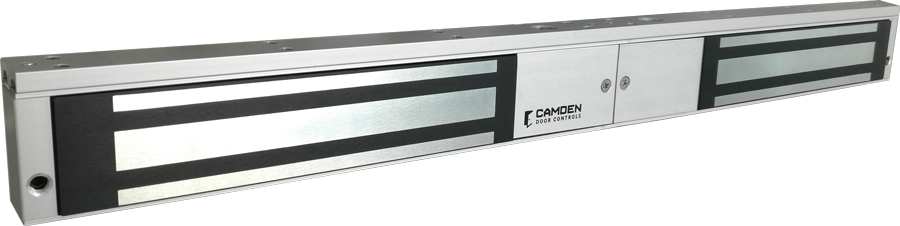

CX-92S-06, 600 lbs. Surface Mount Double Door - Basic
|
|
Camden CX-92 Series 600 & 1200 lbs. double door magnetic locks offer the best performance and value! The 'TDS' option provides an adjustable timer, lock sensor, door status switch, relay and LED.
|
| CX-92S-06, 600 lbs. Surface Mount Double Door - Basic |
CX-92S-06, 600 lbs. Surface Mount Double Door - Basic
|
Camden CX-92 Series 600 & 1200 lbs. double door magnetic locks offer the best performance and value! The 'TDS' option provides an adjustable timer, lock sensor, door status switch, relay and LED. |
|
|
|
| Features |
|
Specifications |
|
Resources |
|
|
-
600 and 1,200 Lb. models are UL and ULC listed
-
Weather and vandal resistant constuction proven over thousands of installations
-
Compatible with all access/egress systems
-
Field selectable 12/24 VDC operation
-
On board MOV power surge protection prevents damage to mag lock
-
A wide range of mounting brackets and spacers available
-
Lifetime warranty
| Voltage: |
12/24 VDC
|
| Current Draw: |
|
CX-92S-06:
|
2 x 480 mA @ 12 VDC
2 x 240 mA @ 24 VDC
|
|
CX-92S-12:
|
2 x 420 mA @ 12 VDC
2 x 210 mA @ 24 VDC
|
| |
| Temp Range: |
32°F to 131°F (0°C to 55°C)
|
| Contact Rating: |
|
CX-92S-12TDS,
CX-92S-06TDS:
|
Bond Sensor: 2A @ 24 VDC
Door Status Switch: 0.5A @ 28V AC/DC
|
| |
| Holding Force: |
|
CX-91S-06:
|
600 lbs. (272 kg.)
|
|
CX-91S-12:
|
1,200 lbs. (544 kg.)
|
| |
| Dimensions (body): |
|
CX-92S-06:
|
19-3/4" x 1-5/8" x 1-1/8"
(500m x 42mm x 27mm)
|
|
CX-92S-12:
|
21" x 2-5/8" x 1-9/16"
(532mm x 67mm x 40mm)
|
| |
| Armature Plate: |
600 lbs.:
2 x 7-1/4" x 1-1/2" x 15/32"
2 x (185mm x 38mm x 12mm)
1,200 lbs.:
2 x 7-9/32" x 3" x 5/8"
2 x (185mm x 61mm x 16.5mm)
|
|
|
|
1200 lbs.
 click to expand section
|
|
Net Cost
|
|
 |

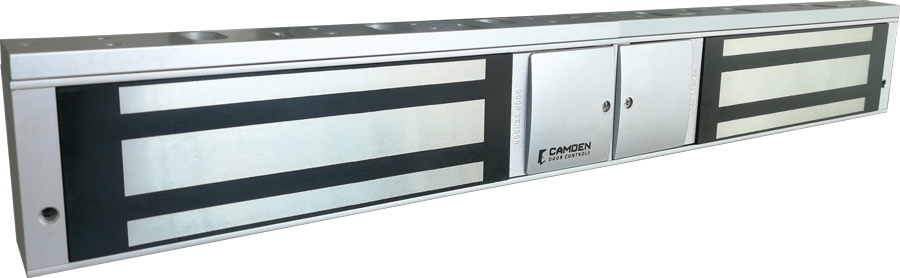

CX-92S-12 |
1,200 lbs. Surface mount double door magnetic lock - basic
EDI Data, Approvals
|
|
1,200 lbs. Surface mount double door magnetic lock - basic
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.75"L x 11.5"W x 3.5"H
Weight: 10.88lbs.
UPC: 670454170095
Country of Origin: CN
|
|
|

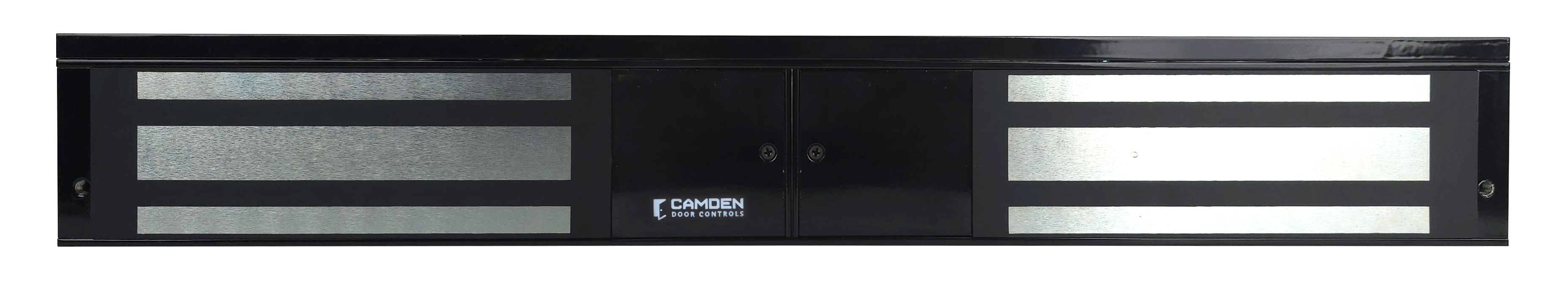

CX-92S-12-BK |
1,200 lbs. Surface mount double door magnetic lock - basic, all-black finish
EDI Data, Approvals
|
|
1,200 lbs. Surface mount double door magnetic lock - basic, all-black finish
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.75"L x 11.5"W x 3.5"H
Weight: 10.75lbs.
UPC: 670454220769
Country of Origin: MY
|
|
|
CX-92S-12TDS |
1,200 lbs. Surface mount double door magnetic lock - with adjustable timer, door status switch, lock sensor/relay & LED
EDI Data, Approvals
|
|
1,200 lbs. Surface mount double door magnetic lock - with adjustable timer, door status switch, lock sensor/relay & LED
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.75"L x 22"W x 3.5"H
Weight: 21.47lbs.
UPC: 670454155580
Country of Origin: CN
|
|
|
CX-92S-12TDS-BK |
1,200 lbs. Surface mount double door magnetic lock - with adjustable timer, door status switch, lock sensor/relay & LED, all-black finish
EDI Data, Approvals
|
|
1,200 lbs. Surface mount double door magnetic lock - with adjustable timer, door status switch, lock sensor/relay & LED, all-black finish
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.75"L x 11.5"W x 3.5"H
Weight: 10.75lbs.
UPC: 670454220783
Country of Origin: MY
|
| |
|
600 lbs.
click to expand section
|
|
Net Cost
|
|
|
CX-92S-06 |
600 lbs. Surface mount double door magnetic lock - basic
EDI Data, Approvals
|
|
600 lbs. Surface mount double door magnetic lock - basic
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.5"L x 20.5"W x 2"H
Weight: 9.05lbs.
UPC: 670454150370
Country of Origin: CN
|
|
|

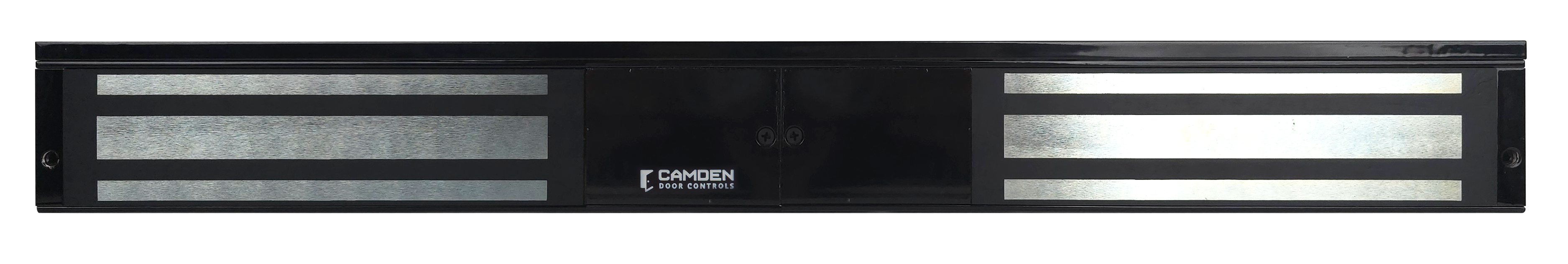

CX-92S-06-BK |
600 lbs. Surface mount double door magnetic lock - basic, all-black finish
EDI Data, Approvals
|
|
600 lbs. Surface mount double door magnetic lock - basic, all-black finish
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.5"L x 20.5"W x 2"H
Weight: 9.5lbs.
UPC: 670454220745
Country of Origin: MY
|
|
|
CX-92S-06TDS |
600 lbs. Surface mount double doors - with adjustable timer, door status switch, lock sensor/relay & LED
EDI Data, Approvals
|
|
600 lbs. Surface mount double doors - with adjustable timer, door status switch, lock sensor/relay & LED
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.5"L x 20.5"W x 2"H
Weight: 9.05lbs.
UPC: 670454155597
Country of Origin: CN
|
|
|
CX-92S-06TDS-BK |
600 lbs. Surface mount double doors - with adjustable timer, door status switch, lock sensor/relay & LED, all-black finish
EDI Data, Approvals
|
|
600 lbs. Surface mount double doors - with adjustable timer, door status switch, lock sensor/relay & LED, all-black finish
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.5"L x 20.5"W x 2"H
Weight: 9.5lbs.
UPC: 670454220776
Country of Origin: MY
|
| |
|
|
|
Replacement PC Boards:
click to expand section
|
|
Net Cost
|
|
|
|
60-36D001-V2 |
For 600 lbs. magnet
EDI Data, Approvals
|
|
For 600 lbs. magnet
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454167019
Country of Origin: CN
|
|
|
|
60-36D002-V2 |
For 600 lbs. magnet, TLS/TDS
EDI Data, Approvals
|
|
For 600 lbs. magnet, TLS/TDS
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670456206198
Country of Origin: CN
|
|
|
|
60-36D003-V2 |
For 1,200 lbs. Magnetic Locks, V1, (open pin connector)
EDI Data, Approvals
|
|
For 1,200 lbs. Magnetic Locks, V1, (open pin connector)
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454155252
Country of Origin: CN
|
|
|
|
60-36D004-V2 |
For 1,200 lbs. Magnetic Locks, TLS and TDS models
EDI Data, Approvals
|
|
For 1,200 lbs. Magnetic Locks, TLS and TDS models
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454155610
Country of Origin: CN
|
| |
|
new option
|
CX-PS Series Power Supplies
Camden's CX-PS Series Power Supplies are UL listed and designed to interface with fire panels, enabling power to be cut to the magnetic lock in the event of a fire, thereby ensuring safe and unobstructed egress.
|
|
|
