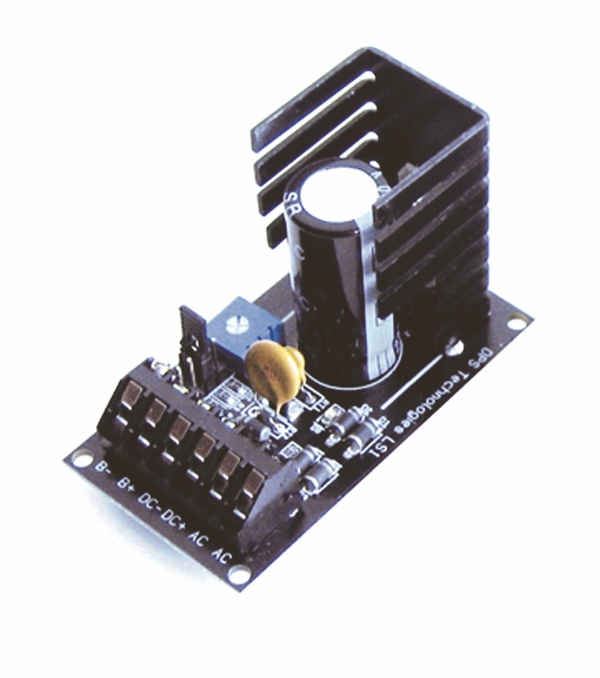

Camden's low cost CX-PS13 linear power supply is designed to provide regulated low voltage power for electrified locks, MProx™ card access systems, washroom control packages and other electronic devices. A 120 VAC transformer with a 6 to 26 VAC output is required.
Applications: Recommended for use with electric strikes
|
|
|
|
Camden's low cost CX-PS13 linear power supply is designed to provide regulated low voltage power for electrified locks, MProx™ card access systems, washroom control packages and other electronic devices. A 120 VAC transformer with a 6 to 26 VAC output is required.
Applications: Recommended for use with electric strikes |
|
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Low cost linear power supply
-
Compact board-only design
-
Self-resetting smart fuse protection
-
Input voltage: 6-26 VAC, depending on output voltage selected
-
Input voltage transformer required, see manual for specification
-
3 year warranty
| Voltage: |
6-26 VAC
|
| Output Voltage: |
6, 12, 24 VDC Selectable or
2-24 VDC (if ADJ is selected)
|
| Output Protection: |
PPTC Resettable Fuse
|
| Output Power: |
800 mA, 200 mA Charging Current
|
| Ripple: |
< 40 mV
|
| Efficiency: |
12 VDC = 85%
24 VDC = 90%
|
| Dimensions: |
2-3/4"L x 1-1/2"W x 1-3/4"H
(69mm x 38mm x 46mm)
|
|
Installation Manuals
|
| CX-PS13V3_Manual_R1 |
pdf |
0.21 |
DOWNLOAD
OPEN
|
|
High Resolution Images
|
| CX-PS13V3 |
jpeg |
0.85 |
DOWNLOAD
OPEN
|
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
CX-PS13V3
Variable Output Linear Power Supply
EDI DATA, APPROVALS
|
|
Variable Output Linear Power Supply
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 3.75"W x 2.25"H
Weight: 0.22lbs.
UPC:670454160423
Country of Origin:CA
|
| |
|
