All Restroom Control Kits
|
|
Basic Control Kits
 click to expand section
|
|
Net Cost
|
|

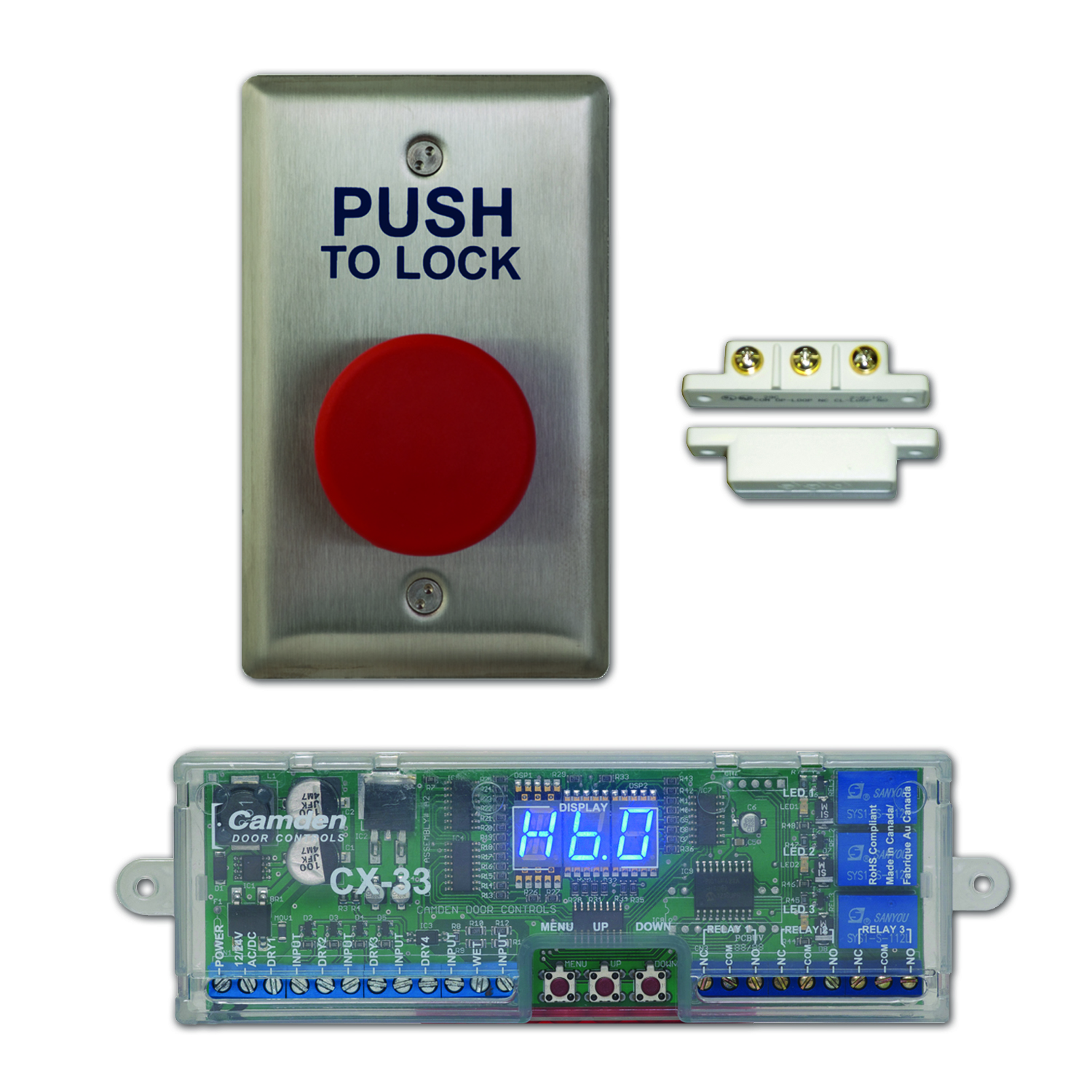

CX-WC10
Basic Pushbutton System Add suffix 'F' to model number for French language
|
|
CX-WC10
Basic Pushbutton System
(1)
Advanced Logic Relay;
(1)
Single Gang, N/O contacts;
Red button;
'PUSH TO LOCK', black text;
(1)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French language.
|
|
|
|
|
CX-WC11
Pushbutton & Annunciator System Add suffix 'F' to model number for French language
|
|
CX-WC11
Pushbutton & Annunciator System
(1)
Advanced Logic Relay;
(1)
Single Gang, N/O contacts;
Red button;
'PUSH TO LOCK', black text;
(1)
Single Gang LED Illuminated Annunciator;
(1)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French language.
|
|
|
|
|

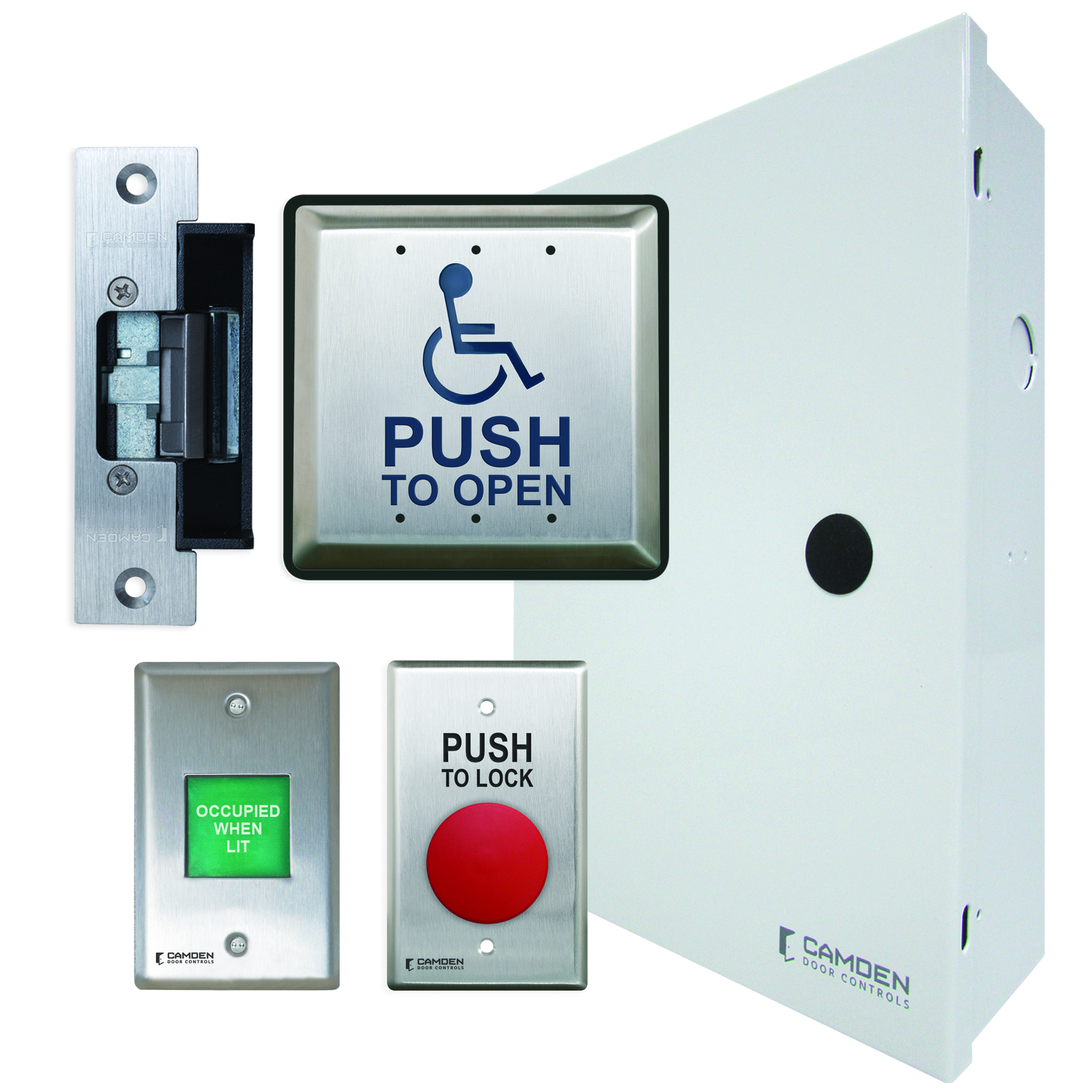

CX-WC11ASM-PS
Surface Mount Push Button & Annunciation System Add suffix 'F' to model number for French Language
|
|
CX-WC11ASM-PS
Surface Mount Push Button & Annunciation System
(1)
(60-40E032) Advanced Logic Control Relay & Power Supply Cabinet;
(2)
4-1/2" Push Plate Switch, Wheelchair & Push to Open Text;
(2)
Surface Box, Shallow depth, black polymer;
(1)
1-5/8" Mushroom Push Button, 'Push to Lock' text;
(1)
Single Gang LED 'Occupied When Lit' Indicator;
(2)
Surface Box, Standard Depth. Double wall;
(1)
Magnetic contact, surface, SPST, white;
(1)
'Universal' Grade 2 electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment;
Add suffix 'F' to model number for French Language.
|
|
|
|
|

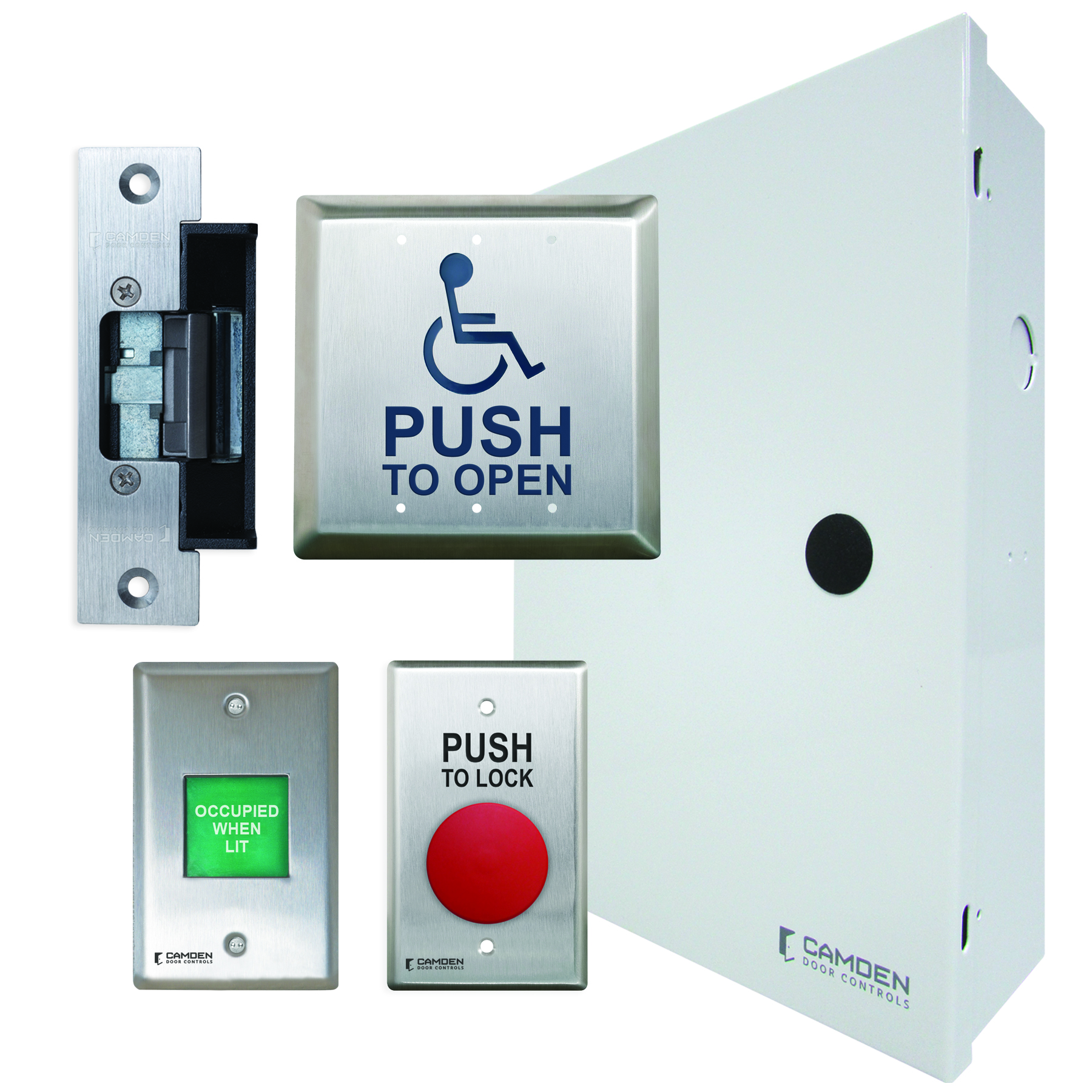

CX-WC11AFM-PS
Flush Mount Push Button & Annunciation System Add suffix 'F' to model number for French Language
|
|
CX-WC11AFM-PS
Flush Mount Push Button & Annunciation System
(1)
(60-40E032) Advanced Logic Control Relay & Power Supply Cabinet;
(2)
4-1/2" Push Plate Switch, Wheelchair & Push to Open Text;
(1)
1-5/8" Mushroom Push Button, 'Push to Lock' text;
(1)
Single Gang LED 'Occupied When Lit' Indicator;
(1)
Magnetic contact, surface, SPST, white;
(1)
'Universal' Grade 2 electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment;
Add suffix 'F' to model number for French Language.
|
|
|
|
| |
|
Aura™ Illuminated Control Kits
click to expand section
|
|
Net Cost
|
|
CX-WC13XFM
Flush Mount AURA™ Illuminated Push Plate Switch System Add suffix 'F' to model number for French language
|
|
CX-WC13XFM
Flush Mount AURA™ Illuminated Push Plate Switch System
(1)
Advanced Logic Relay;
(1)
4-1/2" Square (concealed screws) push plate, c/w sounder, illuminated RED/GREEN/BLUE flush mount CM-55i box;
Double sided. ‘DOOR LOCKED WHEN RED’ / ‘UNLOCKED WHEN GREEN‘ AND ‘OCCUPIED WHEN RED’ / ‘VACANT WHEN GREEN’;
'LOCK SYMBOL' and 'PUSH TO LOCK', red graphic;
(1)
4-1/2" Square (concealed screws) push plate, c/w sounder, illuminated RED/GREEN/BLUE flush mount CM-55i box;
Double sided. ‘DOOR LOCKED WHEN RED’ / ‘UNLOCKED WHEN GREEN‘ AND ‘OCCUPIED WHEN RED’ / ‘VACANT WHEN GREEN’;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(1)
4-1/2" Square Push Plate Switch, Concealed Screws;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(1)
Flush box, Standard Depth, flame/Impact resistant black polymer
Flush double gang box, standard depth, black polymer;
(1)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French language.
|
|
|
|
|
CX-WC13XSM
Surface Mount AURA™ Illuminated Push Plate Switch System Add suffix 'F' to model number for French language
|
|
CX-WC13XSM
Surface Mount AURA™ Illuminated Push Plate Switch System
(1)
Advanced Logic Relay;
(1)
4-1/2" Square push plate (concealed screws) with sounder, illuminated RED/GREEN/BLUE surface mount CM-54i box;
Double sided. ‘DOOR LOCKED WHEN RED’ / ‘UNLOCKED WHEN GREEN‘ AND ‘OCCUPIED WHEN RED’ / ‘VACANT WHEN GREEN’;
'LOCK SYMBOL' and 'PUSH TO LOCK', red graphic;
(1)
4-1/2" Square push plate (concealed screws) with sounder, illuminated RED/GREEN/BLUE surface mount CM-54i box;
Double sided. ‘DOOR LOCKED WHEN RED’ / ‘UNLOCKED WHEN GREEN‘ AND ‘OCCUPIED WHEN RED’ / ‘VACANT WHEN GREEN’;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(1)
4-1/2" Square Push Plate Switch, Concealed Screws;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(1)
Surface Box. Standard Depth, flame/Impact resistant black polymer;
(1)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French language.
|
|
|
|
|
CX-WC13AXFM
Flush Mount Combo Illuminated Push Plate System
|
|
CX-WC13AXFM
Flush Mount Combo Illuminated Push Plate System
(1)
Advanced Logic Relay;
(1)
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Flush AURA(tm) Illuminated Enclosure and Sign;
(1)
4-1/2" Square (concealed screws) push plate, c/w sounder, illuminated RED/GREEN/BLUE flush mount CM-55i box;
Double sided. ‘DOOR LOCKED WHEN RED’ / ‘UNLOCKED WHEN GREEN‘ AND ‘OCCUPIED WHEN RED’ / ‘VACANT WHEN GREEN’;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(1)
Magnetic contact, surface, SPST, white;
|
|
|
|
|
CX-WC13AXSM
Surface Mount Combo Illuminated Push Plate System
|
|
CX-WC13AXSM
Surface Mount Combo Illuminated Push Plate System
(1)
Advanced Logic Relay;
(1)
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Surface AURA(tm) Illuminated Enclosure and Sign;
(1)
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Surface AURA(tm) Illuminated Enclosure and Sign;
(1)
Magnetic contact, surface, SPST, white;
|
|
|
|
|

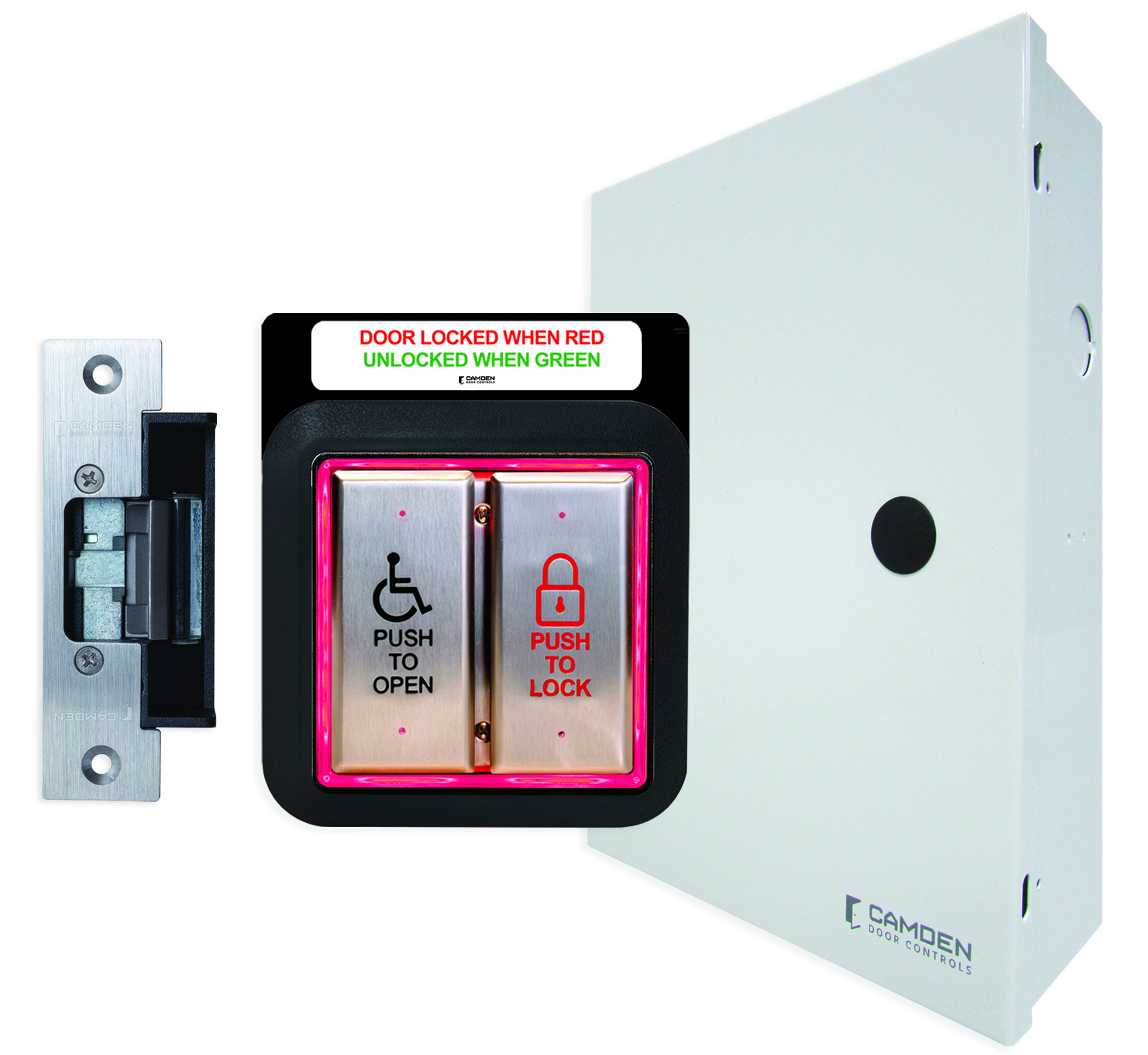

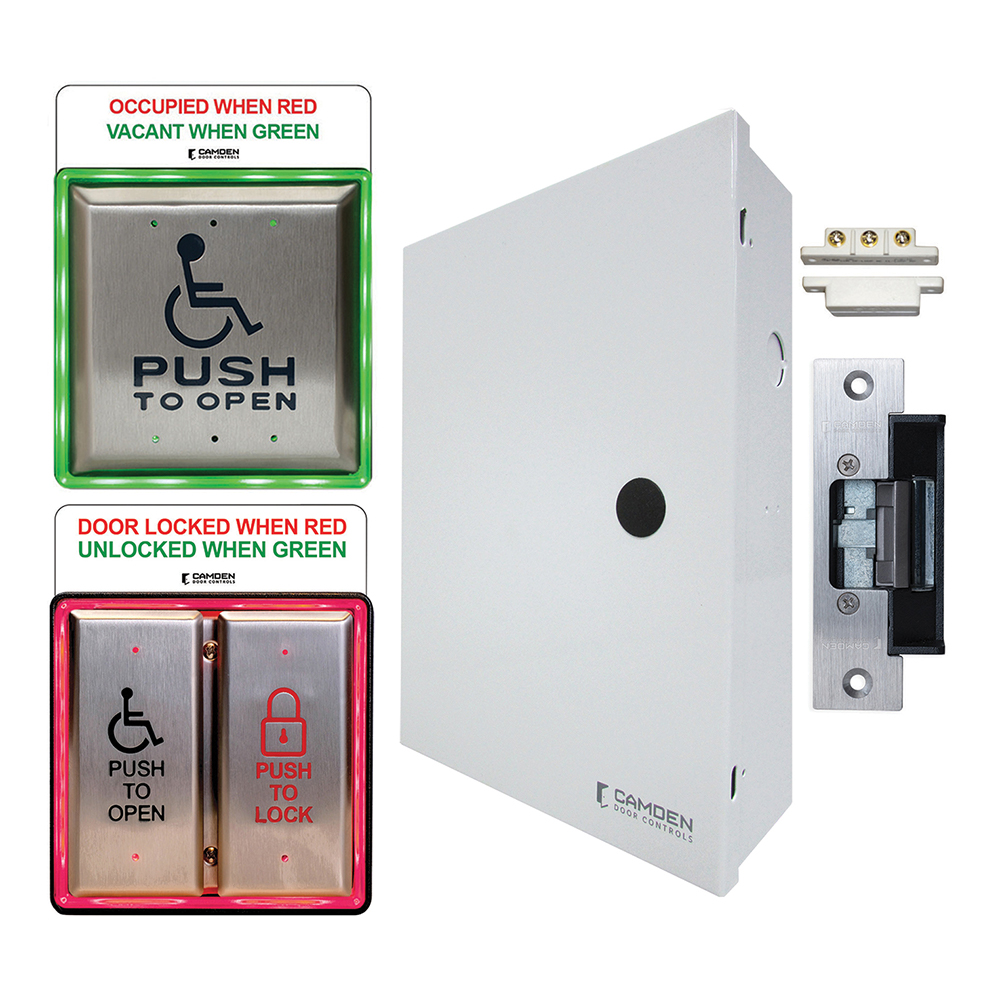

CX-WC13AXFM-PS
Flush Mount Combo Illuminated Push Plate System Add suffix 'F' to model number for French Language
|
|
CX-WC13AXFM-PS
Flush Mount Combo Illuminated Push Plate System
(1)
(60-40E033) Advanced Logic Control Relay & Power Supply Cabinet;
(1)
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Flush AURA(tm) Illuminated Enclosure and Sign;
(1)
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Flush AURA(tm) Illuminated Enclosure and Sign;
(1)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment;
(1)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French Language.
|
|
|
|
|

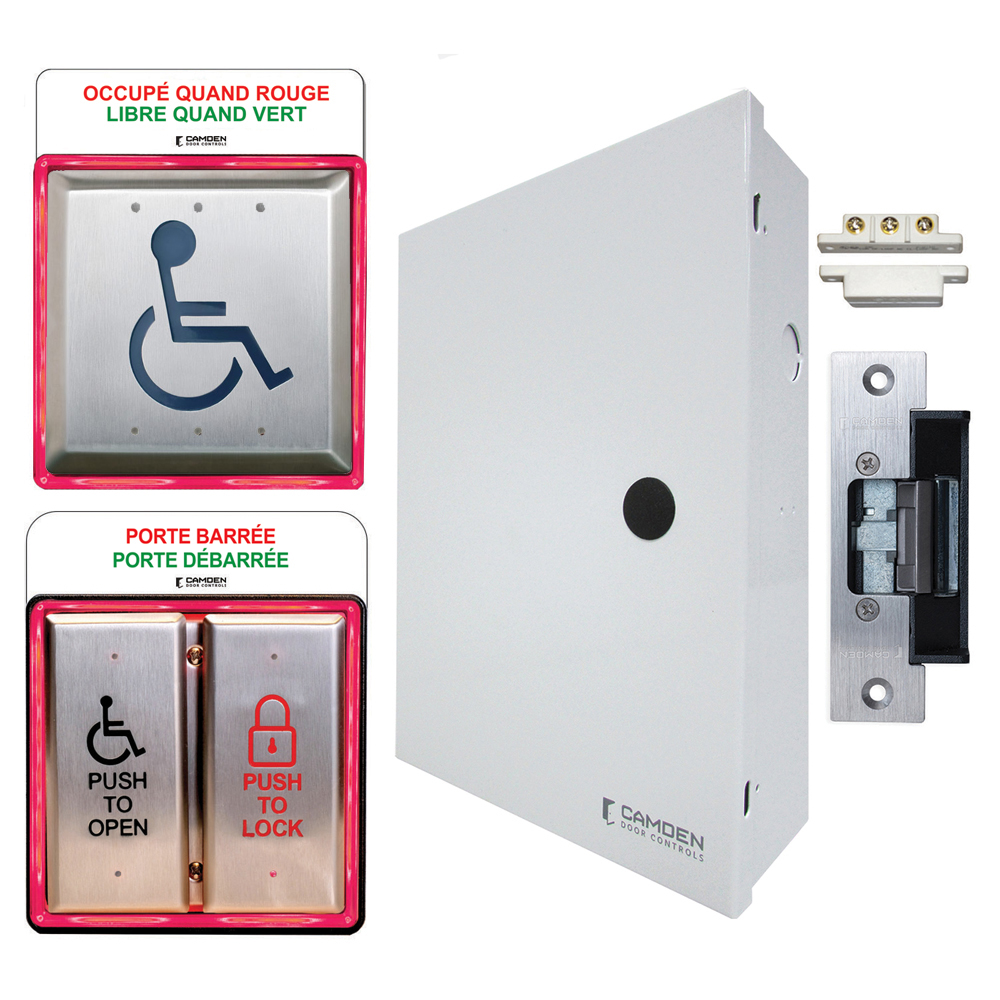

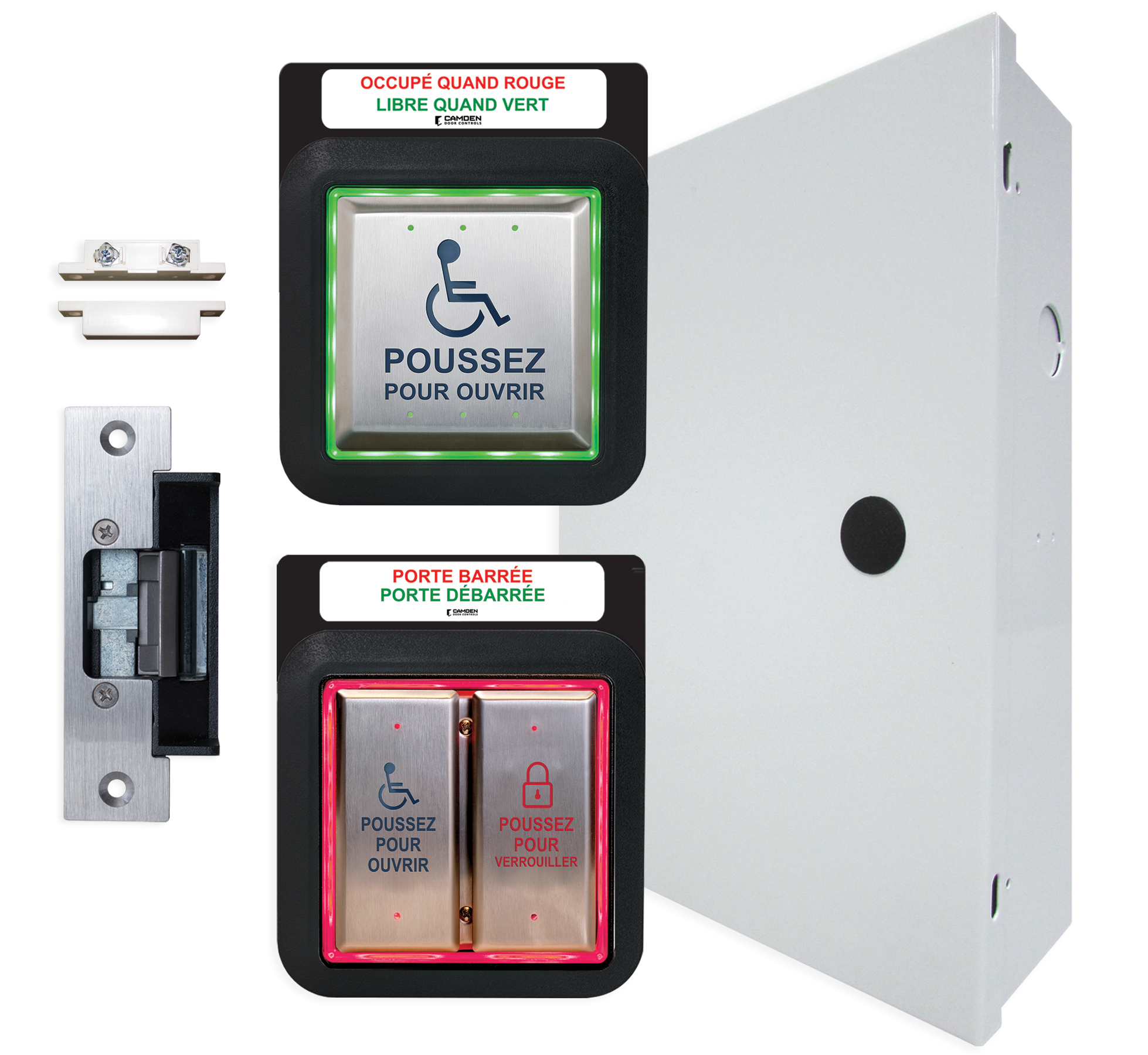

CX-WC13AXFM-PSF
Flush Mount Combo Illuminated Push Plate System FRENCH
|
|
CX-WC13AXFM-PSF
Flush Mount Combo Illuminated Push Plate System FRENCH
(1)
Advanced Logic Control Relay & Power Supply Cabinet;
(1)
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Surface AURA(tm) Illuminated Enclosure and Sign FRENCH;
(1)
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Surface AURA(tm) Illuminated Enclosure and Sign FRENCH;
(1)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B);
(1)
Magnetic contact, surface, SPST, white;
|
|
|
|
|

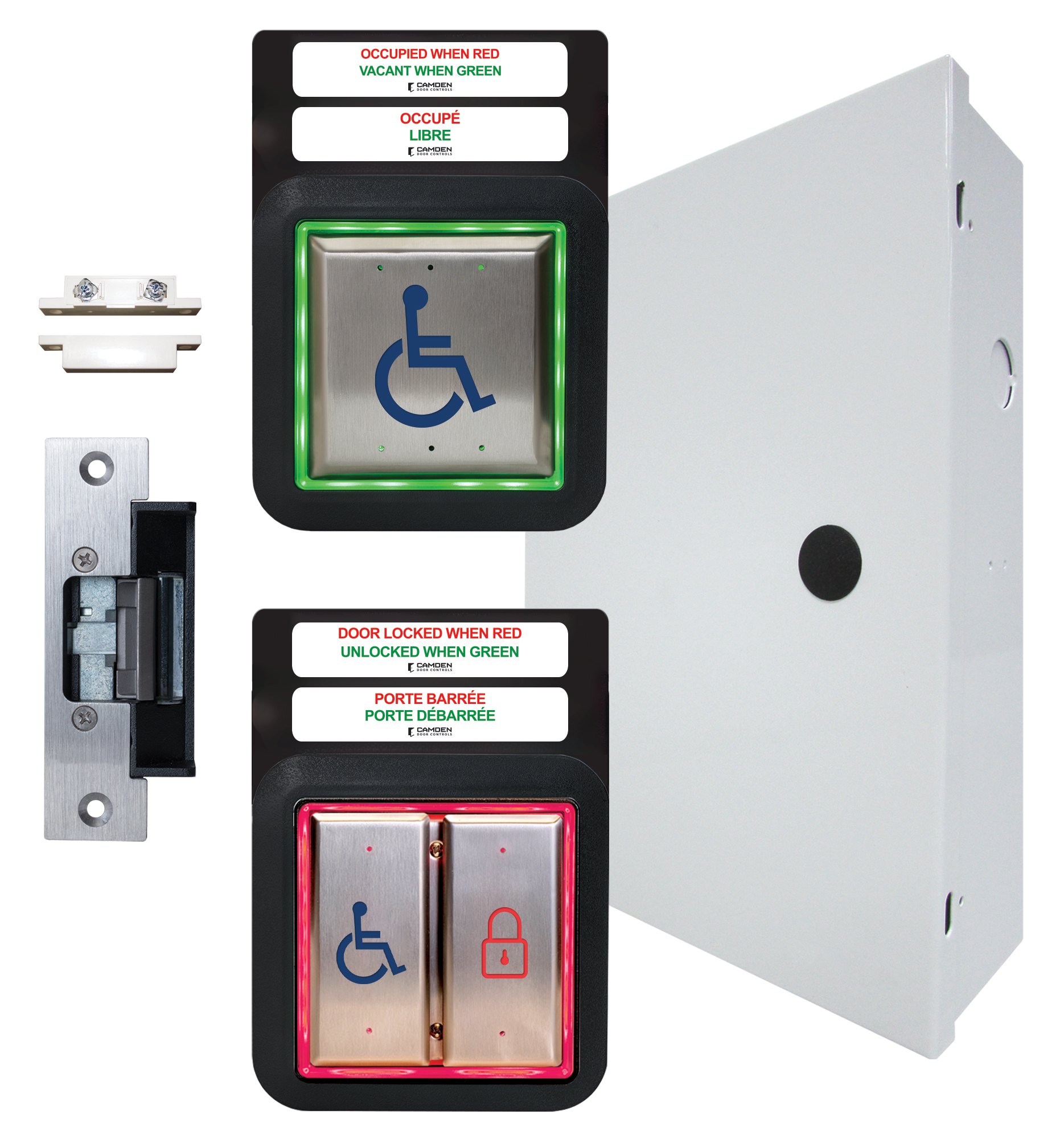

CX-WC13AXFM-PSFE
Flush Mount Combo Illuminated Push Plate System FRENCH ENGLISH
|
|
CX-WC13AXFM-PSFE
Flush Mount Combo Illuminated Push Plate System FRENCH ENGLISH
(1)
Advanced Logic Control Relay & Power Supply Cabinet;
(1)
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Flush AURA(tm) Illuminated Enclosure and Sign - FRENCH ENGLISH;
(1)
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Flush AURA(tm) Illuminated Enclosure and Sign;
(1)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B);
(1)
Magnetic contact, surface, SPST, white;
|
|
|
|
|
CX-WC13AXSM-PS
Surface Mount Combo Illuminated Push Plate System Add suffix 'F' to model number for French Language
|
|
CX-WC13AXSM-PS
Surface Mount Combo Illuminated Push Plate System
(1)
(60-40E033) Advanced Logic Control Relay & Power Supply Cabinet;
(1)
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Surface AURA(tm) Illuminated Enclosure and Sign;
(1)
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Surface AURA(tm) Illuminated Enclosure and Sign;
(1)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment;
(1)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French Language.
|
|
|
|
|
CX-WC14XFM
Flush Mount Two Door Restroom System CX-EMF-2 also provides option for timed unlock and strobe annunciator illumination.
|
|
CX-WC14XFM
Flush Mount Two Door Restroom System
(1)
Multi-function relay - Plastic enclosure;
(2)
4-1/2" Square (concealed screws) push plate, c/w sounder, illuminated RED/GREEN/BLUE flush mount CM-55i box;
Double sided. ‘DOOR LOCKED WHEN RED’ / ‘UNLOCKED WHEN GREEN‘ AND ‘OCCUPIED WHEN RED’ / ‘VACANT WHEN GREEN’;
'LOCK SYMBOL' and 'PUSH TO LOCK', red graphic;
(2)
4-1/2" Square (concealed screws) push plate, c/w sounder, illuminated RED/GREEN/BLUE flush mount CM-55i box;
Double sided. ‘DOOR LOCKED WHEN RED’ / ‘UNLOCKED WHEN GREEN‘ AND ‘OCCUPIED WHEN RED’ / ‘VACANT WHEN GREEN’;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
4-1/2" Square Push Plate Switch, Concealed Screws;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Flush box, Standard Depth, flame/Impact resistant black polymer;
(2)
Magnetic contact, surface, SPST, white;
CX-EMF-2 also provides option for timed unlock and strobe annunciator illumination.
|
|
|
|
|
CX-WC14XSM
Surface Mount Two Door Restroom System Add suffix 'F' to model number for French language
|
|
CX-WC14XSM
Surface Mount Two Door Restroom System
(1)
Multi-function relay - Plastic enclosure;
(2)
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Surface AURA(tm) Illuminated Enclosure and Sign;
(2)
4-1/2" Push Plate Switch, Icon & Push to Lock, with Surface AURA(tm) Illuminated Enclosure and Sign;
(2)
4-1/2" Push Plate Switch, Wheelchair & Push to Open Text;
(2)
Surface Box. Standard Depth, flame/Impact resistant black polymer;
(2)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French language.
|
|
|
|
|
CX-WC14AXSM-PS
Surface Mount Two Door Restroom System Add suffix 'F' to model number for French Language
|
|
CX-WC14AXSM-PS
Surface Mount Two Door Restroom System
(1)
Door Control and 2 Amp. Power Supply Cabinet;
(2)
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Surface AURA(tm) Illuminated Enclosure and Sign;
(2)
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Surface AURA(tm) Illuminated Enclosure and Sign;
(2)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B);
(2)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French Language.
|
|
|
|
|
CX-WC14AXFM-PS
Flush Mount Two Door Restroom System Add suffix 'F' to model number for French Language
|
|
CX-WC14AXFM-PS
Flush Mount Two Door Restroom System
(1)
Door Control and 2 Amp. Power Supply Cabinet;
(2)
Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Flush AURA(tm) Illuminated Enclosure and Sign;
(2)
4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Flush AURA(tm) Illuminated Enclosure and Sign;
(2)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B);
(2)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French Language.
|
|
|
|
|
CX-WC15XFM
Flush Mount AURA Illuminated Push Plate Switch & Assistance Switch System Same operation as CX-WC13 kit with the additional option for flashing 'Assistance Requested' annunication and timed washroom lock Add suffix 'F' to model number for French language
|
|
CX-WC15XFM
Flush Mount AURA Illuminated Push Plate Switch & Assistance Switch System
(1)
Multi-function relay - Plastic enclosure;
(1)
4-1/2" Square (concealed screws) push plate, c/w sounder, illuminated RED/GREEN/BLUE flush mount CM-55i box;
Double sided. ‘DOOR LOCKED WHEN RED’ / ‘UNLOCKED WHEN GREEN‘ AND ‘OCCUPIED WHEN RED’ / ‘VACANT WHEN GREEN’;
'LOCK SYMBOL' and 'PUSH TO LOCK', red graphic;
(1)
4-1/2" Square (concealed screws) push plate, c/w sounder, illuminated RED/GREEN/BLUE flush mount CM-55i box;
Double sided. ‘DOOR LOCKED WHEN RED’ / ‘UNLOCKED WHEN GREEN‘ AND ‘OCCUPIED WHEN RED’ / ‘VACANT WHEN GREEN’;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(1)
4-1/2" Square Push Plate Switch, Concealed Screws;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(1)
Flush box, Standard Depth, flame/Impact resistant black polymer;
(1)
Single gang, Push/Pull, N/O & N/C Stainless steel faceplate, maintained.;
Red button;
'Press For Emergency Assistance', black;
(1)
Magnetic contact, surface, SPST, white;
Same operation as CX-WC13 kit with the additional option for flashing 'Assistance Requested' annunication and timed washroom lock Add suffix 'F' to model number for French language.
|
|
|
|
|
CX-WC15XSM
Surface Mount AURA Illuminated Push Plate Switch & Assistance Switch System Add suffix 'F' to model number for French language
|
|
CX-WC15XSM
Surface Mount AURA Illuminated Push Plate Switch & Assistance Switch System
(1)
Multi-function relay - Plastic enclosure;
(1)
4-1/2" Square push plate (concealed screws) with sounder, illuminated RED/GREEN/BLUE surface mount CM-54i box;
Double sided. ‘DOOR LOCKED WHEN RED’ / ‘UNLOCKED WHEN GREEN‘ AND ‘OCCUPIED WHEN RED’ / ‘VACANT WHEN GREEN’;
'LOCK SYMBOL' and 'PUSH TO LOCK', red graphic;
(1)
4-1/2" Square push plate (concealed screws) with sounder, illuminated RED/GREEN/BLUE surface mount CM-54i box;
Double sided. ‘DOOR LOCKED WHEN RED’ / ‘UNLOCKED WHEN GREEN‘ AND ‘OCCUPIED WHEN RED’ / ‘VACANT WHEN GREEN’;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(1)
4-1/2" Square Push Plate Switch, Concealed Screws;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(1)
Surface Box. Standard Depth, flame/Impact resistant black polymer;
(1)
Single gang, Push/Pull, N/O & N/C Stainless steel faceplate, maintained.;
Red button;
'Press For Emergency Assistance', black;
(1)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French language.
|
|
|
|
| |
|
SureWave™ Illuminated Control Kits
click to expand section
|
|
Net Cost
|
|
CX-WC16
Touchless Switch Restroom System Add suffix 'F' to model number for French language
|
|
CX-WC16
Touchless Switch Restroom System
(1)
Advanced Logic Relay;
(1)
Wired touchless switch, 1 relay
'Wave to Lock' w/ stainless steelfaceplate and Red/GreenBlue LED illumination;
(1)
Wired touchless switch, 1 relay
, Wave to Open' w/ stainless steel faceplate and Red/Green/Blue LED illumination;
(1)
Wired 'Short Range' touchless swtich, 1 relay, 'Wave to Open' w/ stainless steel faceplate, non-illuminated
'Wave to Open' w/ stainless steel faceplate, non-illuminated;
(1)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French language.
|
|
|
|
|
CX-WC16-PS
Touchless Switch Restroom Kit Add suffix 'F' to model number for French Language
|
|
CX-WC16-PS
Touchless Switch Restroom Kit
(1)
(60-40E035) Advanced Logic Control Relay & Power Supply Cabinet;
(1)
Wired touchless switch, 1 relay
'Wave to Lock' w/ stainless steel faceplate and Red/Green/Blue LED illumination;
(1)
Wired touchless switch, 1 relay, 'Wave to Open' w/ double gang stainless steel faceplate and Red/Green/Blue LED illumination
'Wave to Open' w/ double gang stainless steel faceplate and Red/Green/Blue LED illumination;
(1)
Wired 'short range' touchless switch, 1 relay, 'Wave to Open' w/ stainless steel faceplate, non illiuminated
, 'Wave to Open' w/ stainless steel faceplate, non illiuminated;
(1)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment;
(1)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French Language.
|
|
|
|
|
CX-WC16-PSF
Touchless Switch Restroom Kit FRENCH
|
|
CX-WC16-PSF
Touchless Switch Restroom Kit FRENCH
(1)
(60-40E035) Advanced Logic Control Relay & Power Supply Cabinet;
(1)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment;
(1)
Magnetic contact, surface, SPST, white;
(1)
Wired touchless switch, 1 relay
/43F 'Agitez Pour Verrouiller' w/ stainless steel faceplate and Red/Green/Blue LED illumination;
(1)
Wired touchless switch, 1 relay, 'Agitez Pour Ouvrir' w/ double gang stainless steel faceplate and Red/Green/Blue LED illumination
/42F 'Agitez Pour Ouvrir' w/ double gang stainless steel faceplate and Red/Green/Blue LED illumination;
(1)
Wired 'short range' touchless switch, 1 relay, 'Agitez Pour Ouvrir' w/ stainless steel faceplate, non illiuminated
/42F 'Agitez Pour Ouvrir' w/ stainless steel faceplate, non illiuminated;
|
|
|
|
| |
|
Column™ Switch Restroom Control Kits
click to expand section
|
|
Net Cost
|
|
CX-WC17
Column(tm) Switch Restroom System
|
|
CX-WC17
Column(tm) Switch Restroom System
(1)
Advanced Logic Relay;
(1)
Magnetic contact, surface, SPST, white;
(2)
Curved, Horizontal LED Illuminated Annunciator
with 'Occupied' and 'Locked' Message Labels;
(2)
36" Long Column™ push plate switch, 'WHEELCHAIR' symbol and 'PUSH TO OPEN';
'WHEELCHAIR' symbol and 'PUSH TO OPEN';
(1)
36" Long Column™ push plate switch;
'LOCK' symbol and 'PUSH TO LOCK';
|
|
|
|
|
CX-WC17-PS
Column(tm) Switch Restroom Kit
|
|
CX-WC17-PS
Column(tm) Switch Restroom Kit
(1)
(60-40E035) Advanced Logic Control Relay & Power Supply Cabinet;
(1)
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment;
(1)
Magnetic contact, surface, SPST, white;
(2)
36" Long Column™ push plate switch, 'WHEELCHAIR' symbol and 'PUSH TO OPEN';
'WHEELCHAIR' symbol and 'PUSH TO OPEN';
(1)
36" Long Column™ push plate switch;
'LOCK' symbol and 'PUSH TO LOCK';
(2)
Curved, Horizontal LED Illuminated Annunciator
with 'Occupied' and 'Locked' Message Labels;
|
|
|
|
|
CX-WC17VR-PS
Column™ Switch Restroom System Kit with Power Supply & Hands-Free Sensor Add suffix 'F' to model number for French Language
|
|
CX-WC17VR-PS
Column™ Switch Restroom System Kit with Power Supply & Hands-Free Sensor
(2)
36" Hands-Free Column Switch with /4 Graphics;
'WHEELCHAIR' symbol and 'PUSH TO OPEN';
(1)
36" Hands-Free Column Switch with /8B Graphics;
'LOCK' symbol and 'PUSH TO LOCK';
(1)
Advanced Logic Control Relay & Power Supply Cabinet;
(1)
Grade 2 Electric Strike;
(1)
Magnetic contact, surface, SPST, white;
Add suffix 'F' to model number for French Language.
|
|
|
|
| |
|
