CX-WEC Series

Emergency Call For Universal Restrooms

RoHS Compliant UL Listed Switch Components
< Restroom Control

CX-WEC Series

Emergency Call For Universal Restrooms


Application Kits Directory

Back to product series

Alternatively you may login to download all of them at once as an XLS index.

Login For Pricing
EMERGENCY CALL KITS
Description
CX-WEC10
Universal Emergency Call Kit For use without automatic door operator, or with CX-WC 10, 11, 12, 13 & 14 barrier-free restroom control kit. Add suffix 'F' to model number for French language.
CX-WEC10
Universal Emergency Call Kit
(1) Mushroom Push button, single gang, stainless steel faceplate, push/pull, ‘PRESS FOR EMERGENCY ASSISTANCE’; (1) Single gang LED annunciator with adjustable sounder 'ASSISTANCE REQUESTED'.; (1) Single Gang LED Dome Light, w/ Sounder.; (1) English, solid white sign, ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’; For use without automatic door operator, or with CX-WC 10, 11, 12, 13 & 14 barrier-free restroom control kit. Add suffix 'F' to model number for French language.



CX-WEC10FE
Bilingual Universal Emergency Call Kit for use without automatic door operator, or with CX-WC 10, 11, 12, 13 & 14 barrier-free restroom control kit.

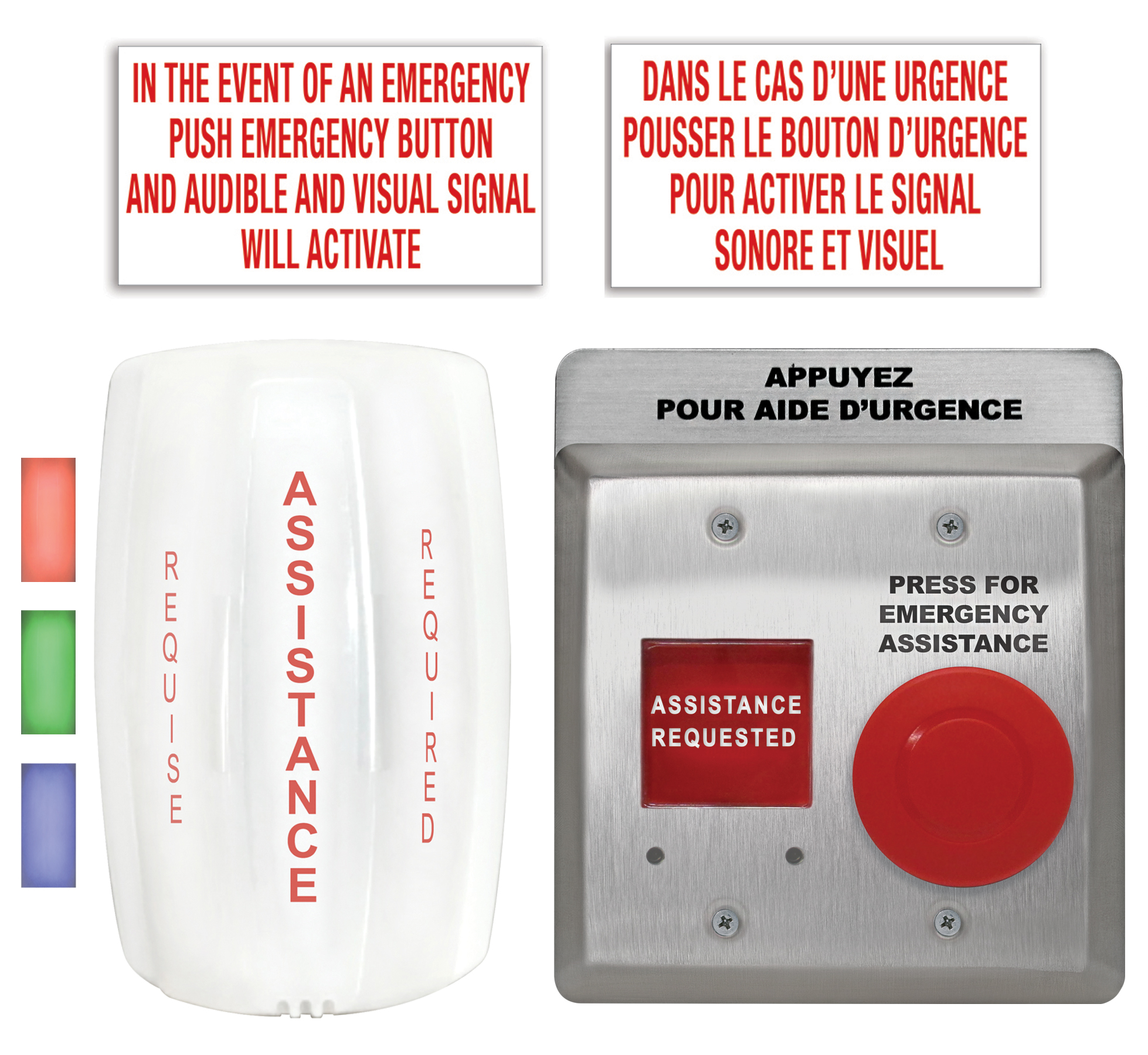

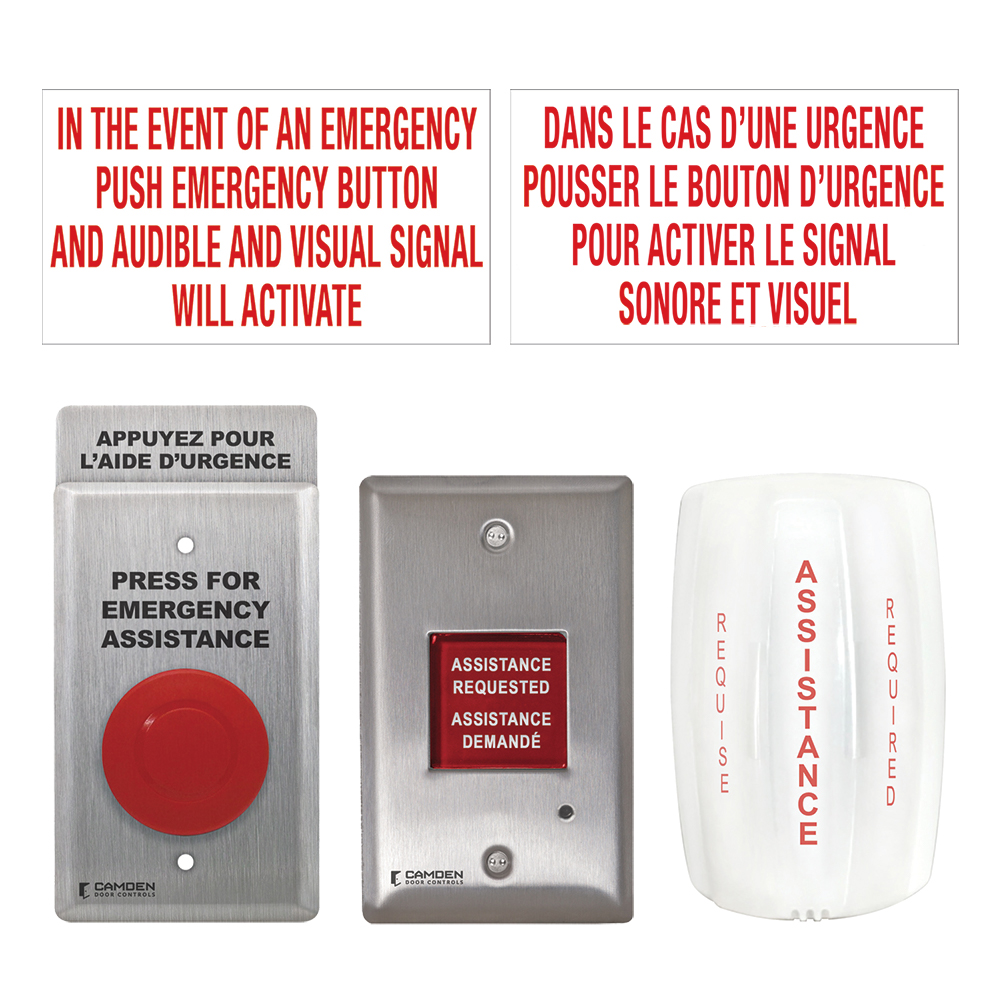

CX-WEC10FE
Bilingual Universal Emergency Call Kit
(1) Bilingual Mushroom Push button, single gang, stainless steel faceplate, push/pull, ‘PRESS FOR EMERGENCY ASSISTANCE’ and Fr. language sign, laser etched with brushed stainless finish.; (1) Single gang LED annunciator with adjustable sounder 'ASSISTANCE REQUESTED'.; (1) Single Gang LED Dome Light, w/ Sounder.; (1) English, solid white sign, ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’; (1) French, solid white sign, ‘DANS LE CAS D’UNE URGENCE POUSSER LE BOUTON D’URGENCE POUR ACTIVER LE SIGNAL SONORE ET VISUEL‘; for use without automatic door operator, or with CX-WC 10, 11, 12, 13 & 14 barrier-free restroom control kit.

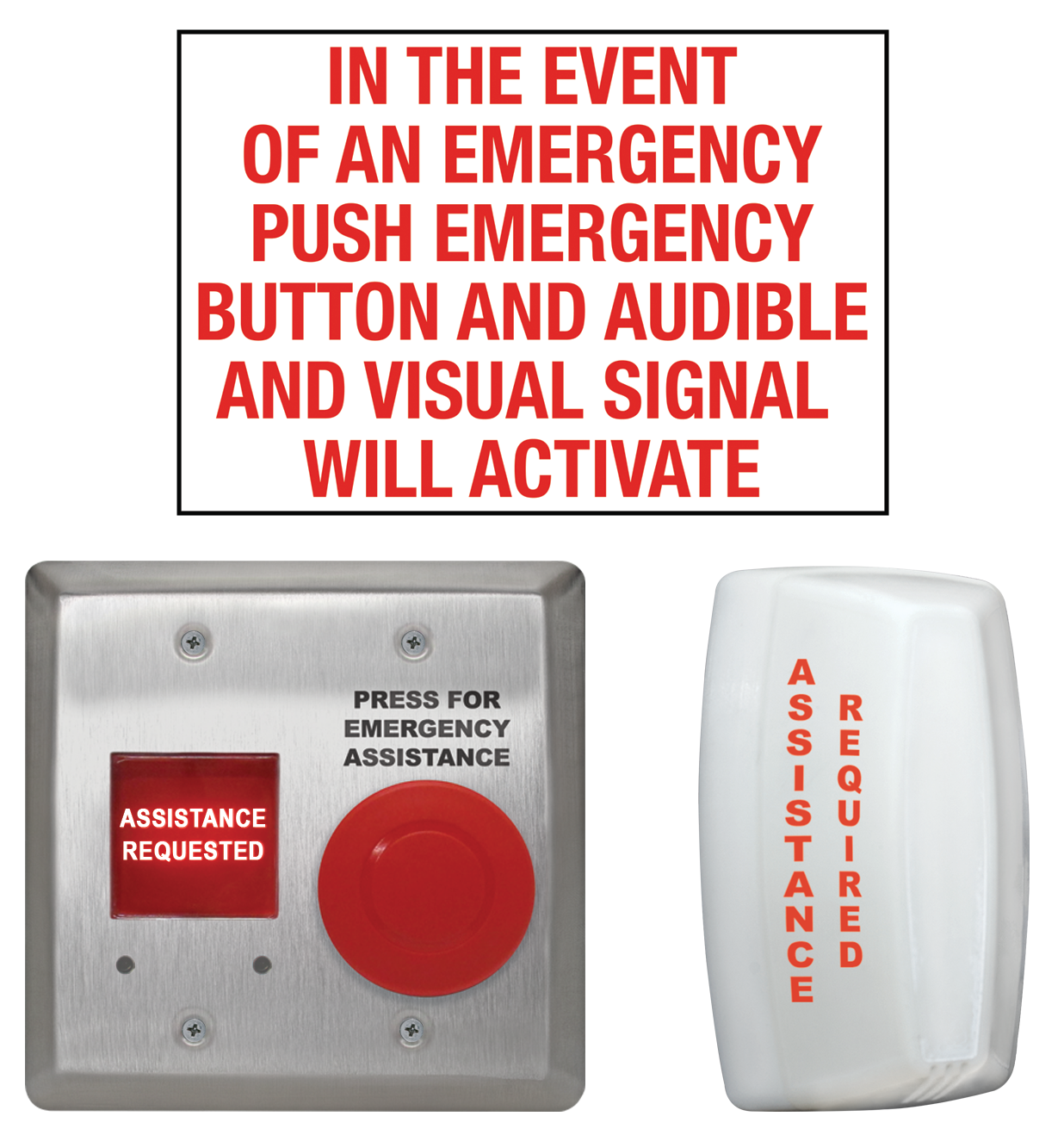

CX-WEC10K2
Universal Emergency Call System Kit, w/ White Dome Light
CX-WEC10K2
Universal Emergency Call System Kit, w/ White Dome Light
(1) Double gang, push/pull mushroom push button, red, 'Assistance Required', w/ LED annunciator and adjustable sounder, 'Assistance Requested'; (1) Single Gang LED Dome Light, w/ Sounder.; (1) English, solid white sign, ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’;

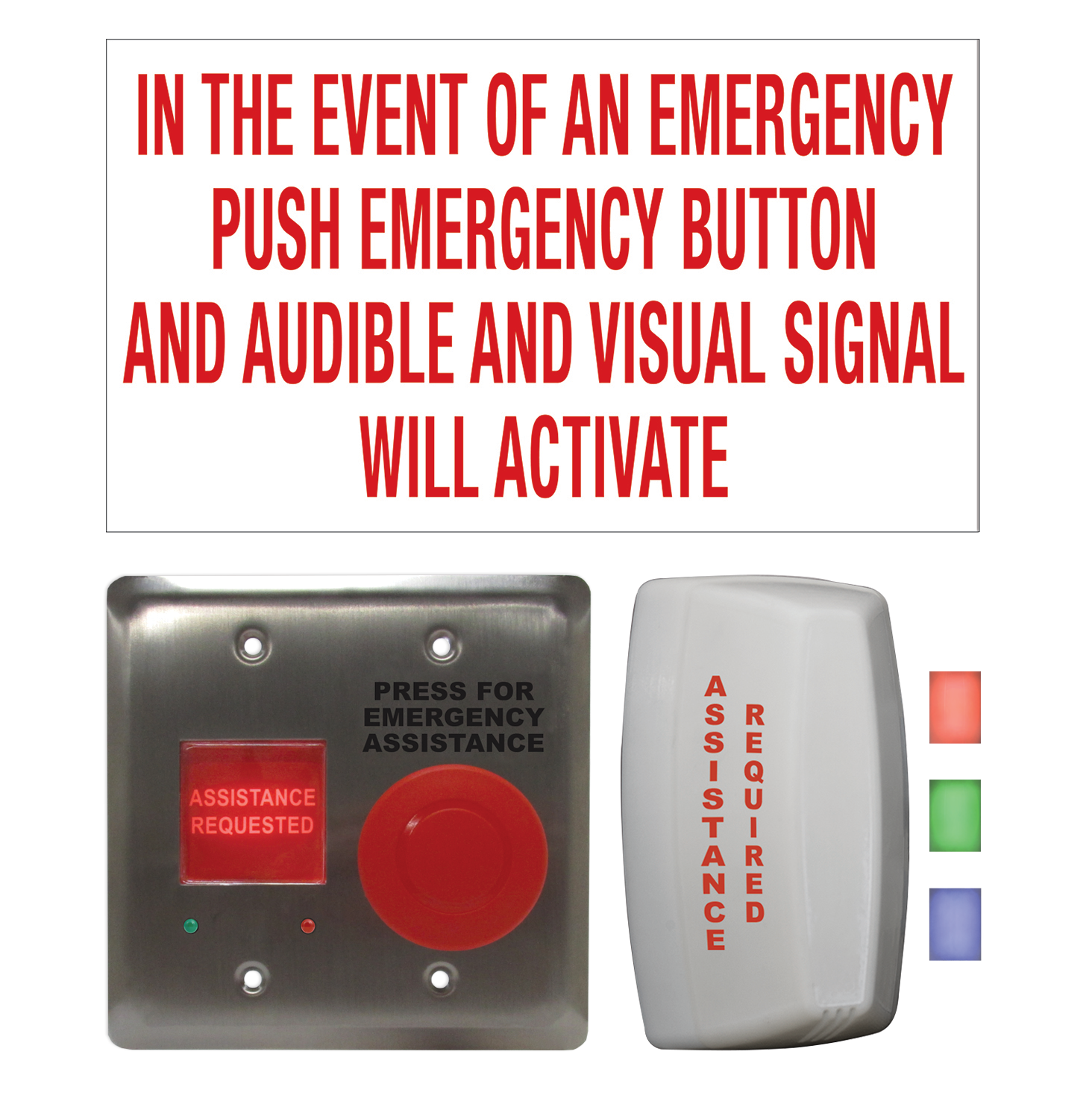

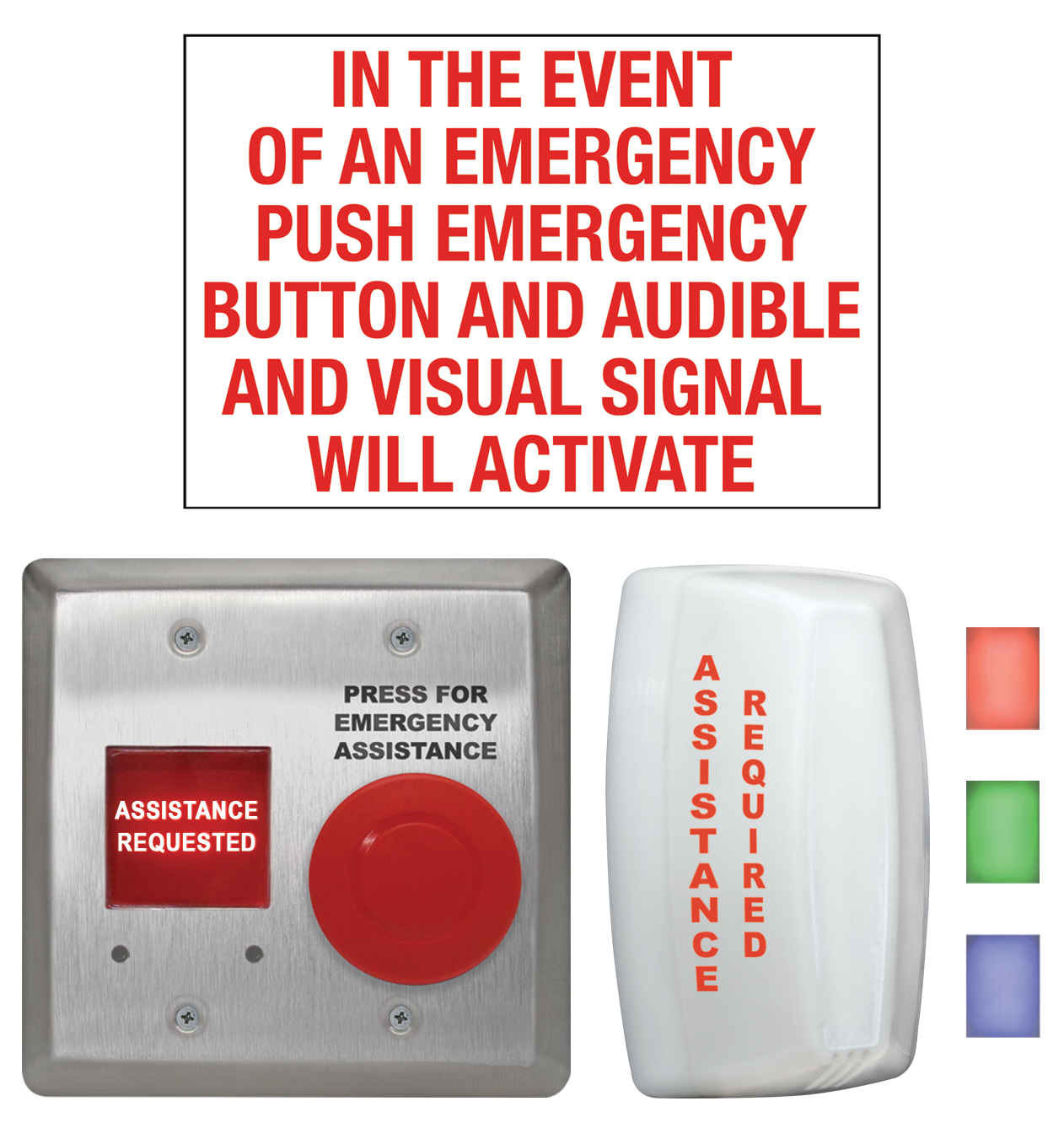

CX-WEC10BK2
Universal Emergency Call System Kit, w/ Multi-Color Dome Light
CX-WEC10BK2
Universal Emergency Call System Kit, w/ Multi-Color Dome Light
(1) Double gang, push/pull mushroom push button, red, 'Assistance Required', w/ LED annunciator and adjustable sounder, 'Assistance Requested'; (1) Single Gang Multi-Color LED Dome Light w/ Sounder; (1) English, solid white sign, ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’;

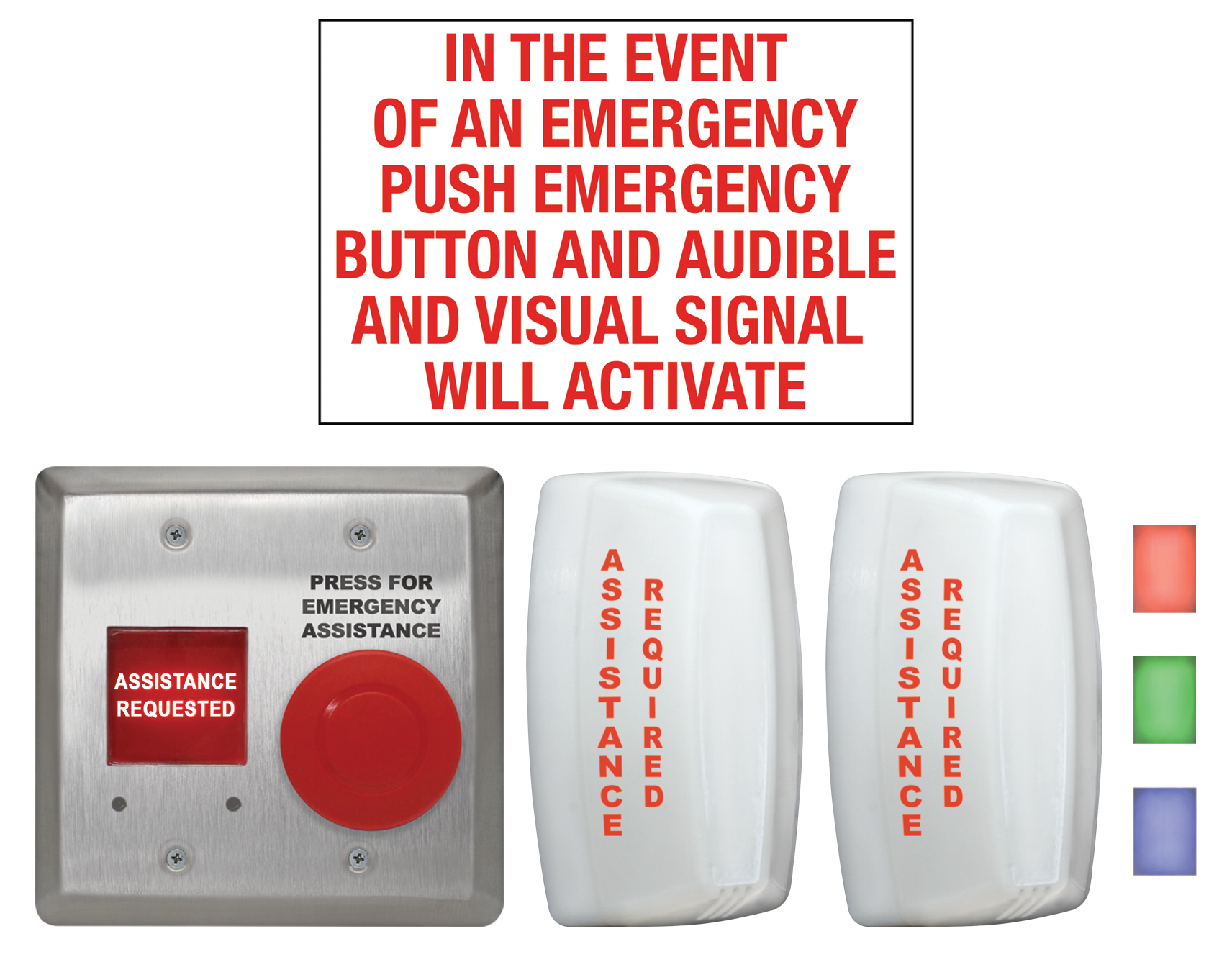

CX-WEC10CK2
Emergency Call System Kit For 2 Door Restrooms, w/ Multi-Color Dome Light
CX-WEC10CK2
Emergency Call System Kit For 2 Door Restrooms, w/ Multi-Color Dome Light
(1) Double gang, SS faceplate, push/pull mushroom push button, red, 'Assistance Required', w/ LED annunciator and adjustable sounder, 'Assistance Requested'; (2) Single Gang Multi-Color LED Dome Light w/ Sounder; (1) English, solid white sign, ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’;



CX-WEC11
Universal Emergency Call Kit For use with CX-WC15 barrier -free restroom control kit. Add suffix 'F' to model number for French language.
CX-WEC11
Universal Emergency Call Kit
(1) Single gang LED annunciator with adjustable sounder 'ASSISTANCE REQUESTED'.; (1) Single Gang LED Dome Light, w/ Sounder.; (1) English, solid white sign, ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’; For use with CX-WC15 barrier -free restroom control kit. Add suffix 'F' to model number for French language.

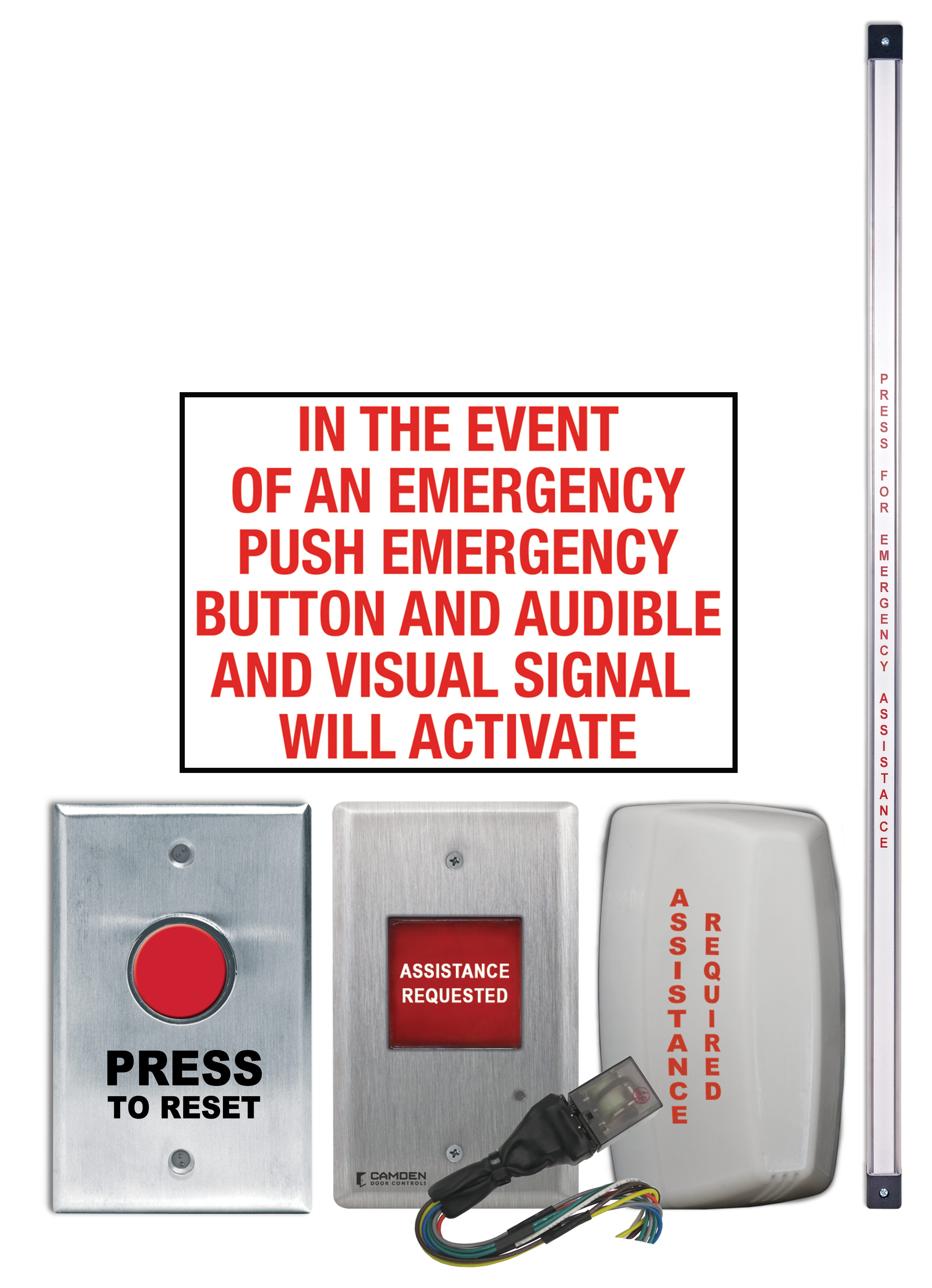

CX-WEC12
Universal Emergency Call Kit with push button reset. For use with momentary 'Press For Emergency Assistance' switches (extra).

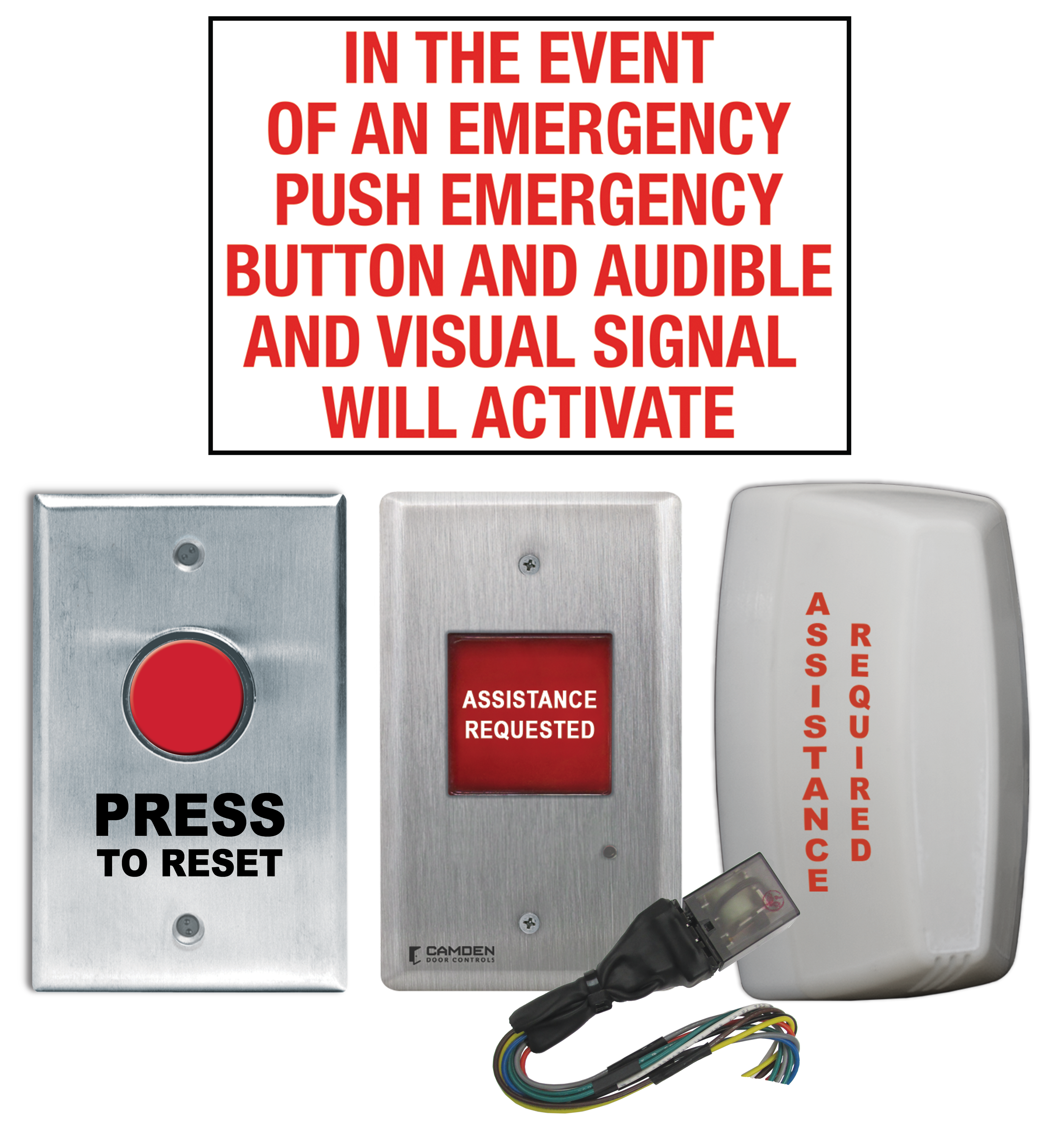

CX-WEC12
Universal Emergency Call Kit with push button reset.
(1) Single gang LED annunciator with adjustable sounder 'ASSISTANCE REQUESTED'.; (1) Single Gang LED Dome Light, w/ Sounder.; (1) English, solid white sign, ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’; (1) 24V Latching Relay Assembly for EM Call System using momentary 'Press For Emergency Assistance' switches; (1) momentary, 'Press for Reset' 1" red push button; For use with momentary 'Press For Emergency Assistance' switches (extra).

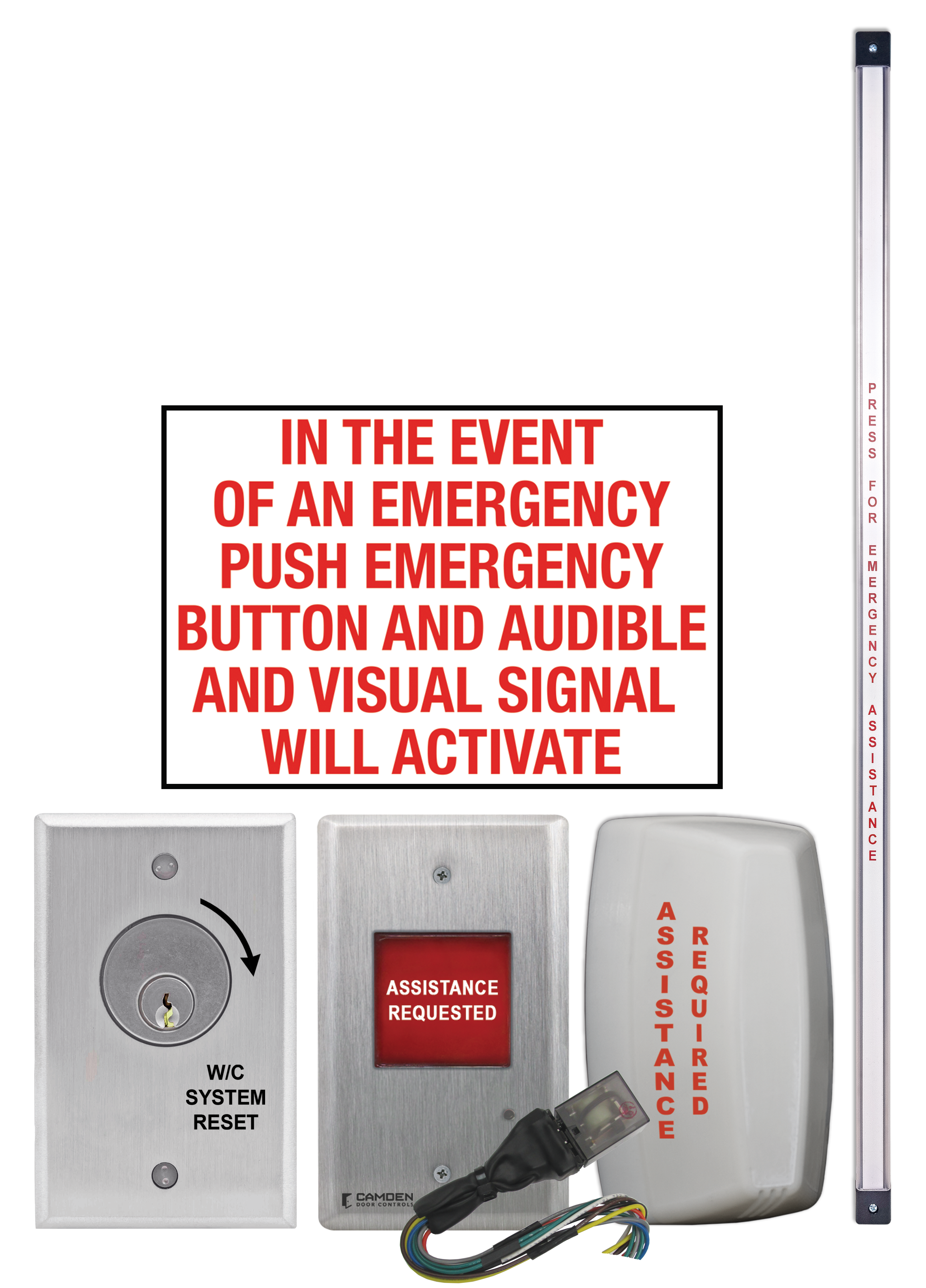

CX-WEC13
Universal Emergency Call Kit with key switch reset For use with momentary 'Press For Emergency Assistance' switches (extra)

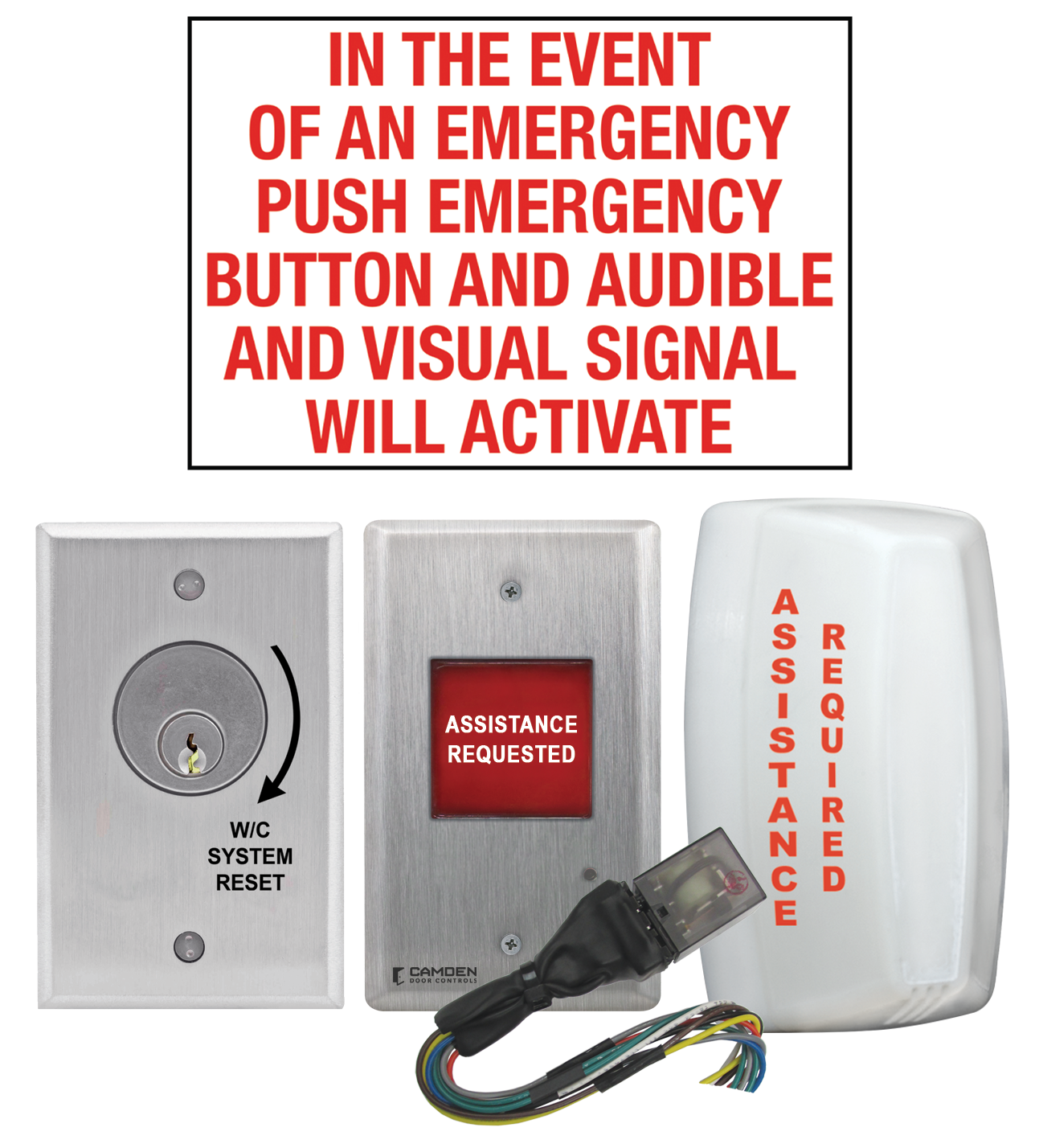

CX-WEC13
Universal Emergency Call Kit with key switch reset
(1) Single gang LED annunciator with adjustable sounder 'ASSISTANCE REQUESTED'.; (1) Single Gang LED Dome Light, w/ Sounder.; (1) English, solid white sign, ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’; (1) 24V Latching Relay Assembly for EM Call System using momentary 'Press For Emergency Assistance' switches; (1) Key Switch, Single Gang SS, SPST Momentary, NC,w/ 'WC System Reset' text and CM-1000/60KD mortise cylinder, keyed different; For use with momentary 'Press For Emergency Assistance' switches (extra).





Don't see the kit you need? We can build it for you!! Contact customer service for no obligation quote today!
