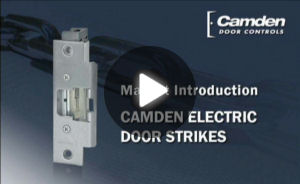

	Video

Series 30
BHMA Grade 3

Related Products

Similar Products
- Series 22
- Series 14
- Series 10/18 (EZ Fit)
- Series 20
- Series 20
- CM-30 Series
- Series 40

Features

•	Centerline Latch Entry, 5/8" - 3/4 Latch Projection
•	UL 1034 Burglary Listed
•	Reversible for RH/LH doors
•	Adjustable Keeper

•	Continuous Duty Operation (DC)
•	Fail Secure Operation
•	EZ Fit(tm) model fits standard ANSI latch openings without cutting or drilling or drilling door frame

ELECTRIC STRIKES With INTEGRAL FACE PLATES

CX-EL3011	Fail Secure, 8-16V AC/DC - ANSI Square, 4 7/8 x 1 1/4"	UL Listed
CX-EL3021	Fail Secure 8-16VDC - ANSI Round 4 7/8 x 1 1/4"	UL Listed
CX-EL3031	Fail Secure 8-16V AC/DC - Hollow Metal Door 6 7/8 x 1 7/16"	UL Listed
CX-EL3041	Fail Secure 8-16VDC - Wood Door (7 15/16" x 1 7/16")	UL Listed
CX-EL3015	Fail Secure 12VDC - ANSI Square, 4 7/8 x 1 1/4"	UL Listed
CX-EL3025	Fail Secure 12VDC - ANSI Round 4 7/8 x 1 1/4"	UL Listed
CX-EL3035	Fail Secure 12VDC - Hollow Metal Doors 6 7/8 x 1 1/4"	UL Listed
CX-EL3045	Fail Secure 12VDC - Wood Door 7 15/16 x 1 7/16"	UL Listed
CX-EL3855A	Fail Secure 12VDC - NEW EZ Fit(tm) Model, with vertical and horizontal adjustment	UL Listed
CX-EL3018	Fail Secure 24VDC - ANSI Square, 4 7/8 x 1 1/4"	UL Listed
CX-EL3028	Fail Secure 24VDC - ANSI Round 4 7/8 x 1 1/4"	UL Listed
CX-EL3038	Fail Secure 24VDC - Hollow Metal Doors 6 7/8 x 1 1/4"	UL Listed
CX-EL3048	Fail Secure 24VDC - Wood Door 7 15/16 x 1 7/16"	UL Listed
CX-EL3858A	Fail Secure 24VDC - EZ Fit(tm) Model, with vertical and horizontal adjustment	UL Listed

ELECTRIC STRIKES


CX-EL3001	Fail Secure, 8 -16V AC/DC	UL Listed
CX-EL3005	Fail Secure 12VDC	UL Listed
CX-EL3008	Fail Secure 24VDC	UL Listed

FACE PLATES FOR STRIKES

3 of 5 click for more

click for fewer

Faceplate Finish Options
CX-XXXDUR		Duranodic Faceplate Finish
Faceplate Options
CX-ESP1		ANSI Square, 4 7/8" X 1 1/4", stainless steel
CX-ESP2		ANSI Round, 4 7/8" X 1 1/4", stainless steel
CX-ESP3		Hollow Metal Door, 6 7/8" x 1 1/4", stainless steel
CX-ESP4		Wood Door, 7 15/16" x 1 7/16" , stainless steel

Product Materials

Sales Literature
Electric Strikes_Presentation	pdf	0.91MB	DOWNLOAD
SaleSheet	pdf	1.74MB	DOWNLOAD
CX-Series30&38_SpS_Rev1_Feb12	pdf	1.76MB	DOWNLOAD
Images
Series 30 Strike	tiff	14.20MB	DOWNLOAD
Series 38 Strike	tiff	15.24MB	DOWNLOAD
Manuals
20 + 30 Series_Installation Instructions	pdf	1.01MB	DOWNLOAD
ElectricStrike EZ-FIT Installation Instructions	pdf	2.34MB	DOWNLOAD
