CM-30 Series Illuminated Switches |
 |
|
|
|
|
CM-30C (Eng., Fr. & Bilingual) |
|
|
CM-30 Series
Square Illuminated Push/Exit Switch
CM-30 Series switches are ideal for the widest range of door control applications. This includes installation as a UL compliant ‘request to exit’ (REX)switch in conformance to NFPA code requirments, ADA compliant exit switch or for other switch control.
The switches are designed to control electric locks, electromagnetic locks, electric strikes, automatic doors, and low energy door operators. They may also be used for shunting, bypassing alarms, request to exit, timed functions and many
other applications.
Where electronic time delay is required (i.e. door held open), Camden offers model CM-30EE, with double break circuitry.

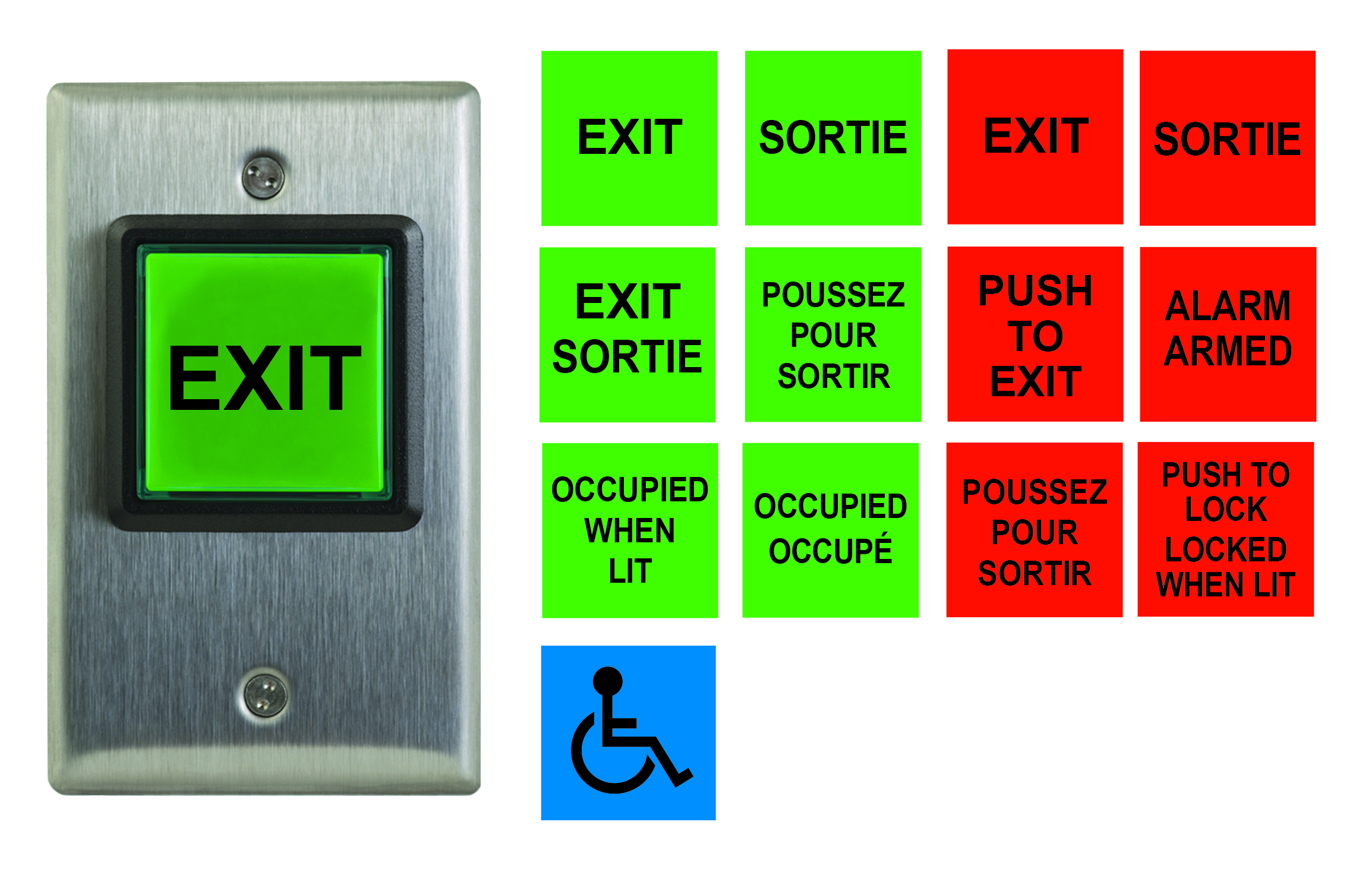

* CM-30C, Switch with 14 Eng., Fr., and Bilingual insert labels shown.
| • |
High visibility 2" square button
|
| • |
Single gang stainless steel faceplate
|
| • |
'C' and 'U' models offer the largest selection of insert labels (see info below for labels included)
|
| • |
'E' model offers economical single label 'Push to Exit' version
|
|
| • |
12/24V operation with standard incandescent bulb
|
| • |
Optional LED's provide super-bright operation and longevity (10 yr estimate)
|
| • |
UL 294 Compliant
|
| • |
3yr. 'Camden Tough' warranty with '2 for 1' replacement
|
|
|
|
|
'UNIVERSAL' MULTI LABEL SWITCHES
|
|
CM-30C |
|
(14) English and French insert labels, 12V - 28V incandescent
. . . more
(14) English and French insert labels, 12V - 28V incandescent
. . .
English and French Label Inserts (Red and Green): 'Push to Exit', 'Exit', 'Occupied When Lit', bilingual versions and wheelchair symbol.
. . . less
|
UL 294 Compliant
|
|
|
|
CM-30C/LED |
|
As above, with 12V - 24V LED
. . . more
As above, with 12V - 24V LED
. . .
English and French Label Inserts (Red and Green): 'Push to Exit', 'Exit', 'Occupied When Lit', bilingual versions and wheelchair symbol.
. . . less
|
UL 294 Compliant
|
|
|
|
CM-30U |
|
(12) English and Spanish insert labels, 12V - 28V incandescent
. . . more
(12) English and Spanish insert labels, 12V - 28V incandescent
. . .
English and Spanish Label Inserts (Red and Green): 'Push to Exit', 'Exit', 'Occupied When Lit' and wheelchair symbol.
. . . less
|
UL 294 Compliant
|
|
|
|
CM-30U/LED |
|
As above, with 12V - 24V LED
. . . more
As above, with 12V - 24V LED
. . .
English and Spanish Label Inserts (Red and Green): 'Push to Exit', 'Exit', 'Occupied When Lit' and wheelchair symbol.
. . . less
|
UL 294 Compliant
|
|
'ECONOMICAL' SINGLE LABEL SWITCHES
|
|
|
CM-30E |
|
(1) English ‘Push to Exit’, 12-28V incandescent
|
UL 294 Compliant
|
|
|
|
CM-30OWL |
|
(1) English 'Occupied When Lit, 12-28V incandescent
|
|
|
|
|
| CM-30DP |
|
DPDT switch, add ‘DP’ to product model numbers above
|
|
|
|
|
