Illuminated Mushroom Pushbutton |
 |
|
CM-3000/3100 Series
Illuminated Mushroom Pushbutton
CM-3000 Series Exit Switches are heavy duty push-buttons designed for industrial and commercial applications, where illumination is required. Buttons are 1 5/8 (40mm) in diameter, and are available in red or green (other colors on request). The faceplate is 1/4 thick brushed aluminum, in 1 3/4 or 2 3/4 widths. Optional duranodic (US 40) finish is also available.
The switches are rated 10 amps @ 30 VDC, either momentary or maintained operation.

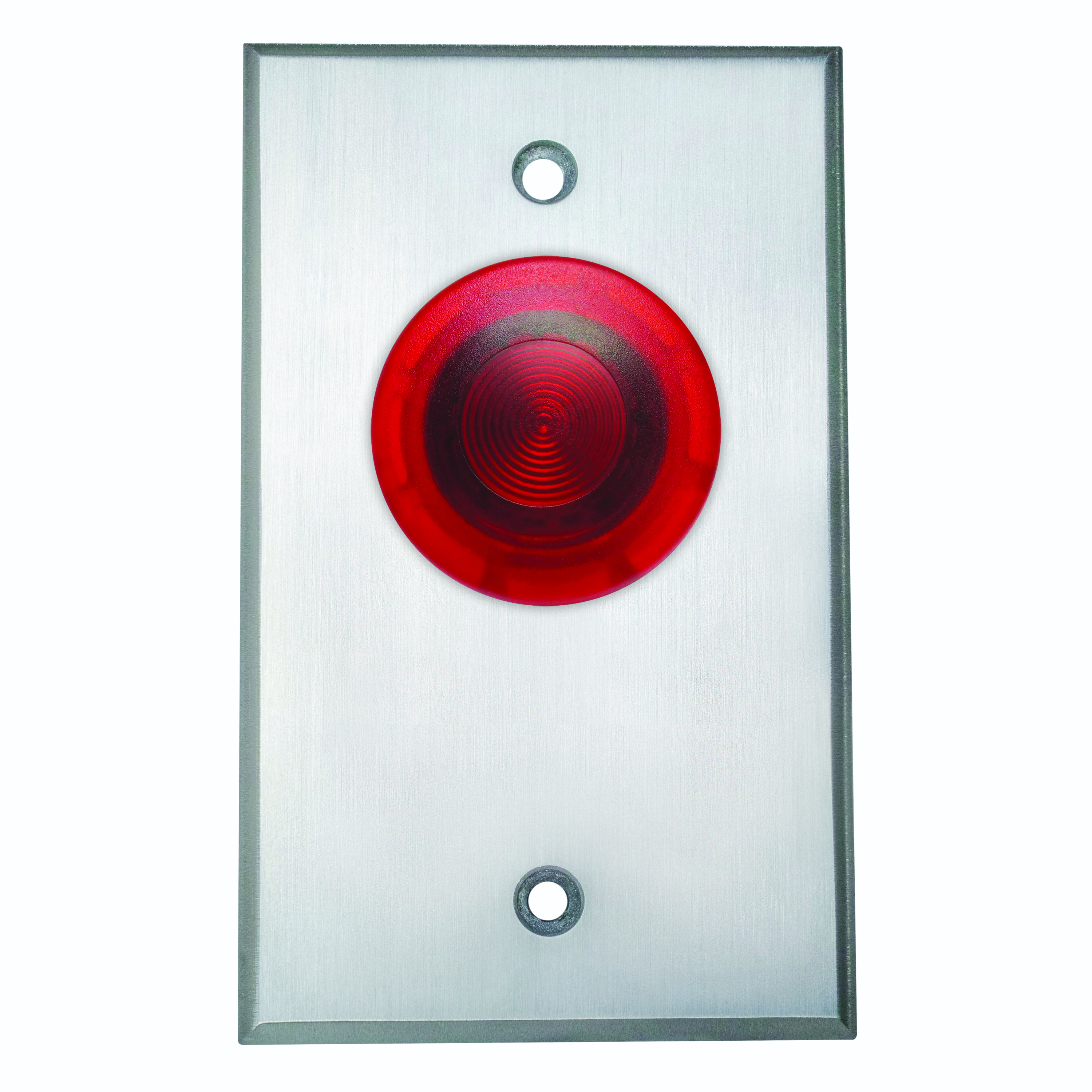

*CM-3000 product image shown
| • |
Indoor/Outdoor applications
|
| • |
1 5/8" red or green illuminated buttons
|
| • |
Single gang width excellent for most applications
|
| • |
1/4" thick cast aluminum faceplate
|
|
| • |
A wide range of configurations including N/O, N/C, momentary, maintained, spring return or push/pull operation
|
| • |
UL61058-1, IEC 61058-2-4 and CAN/CSA-C22.2 Compliant
|
| • |
3yr. 'Camden Tough' warranty with '2 for 1' replacement
|
|
|
|
|

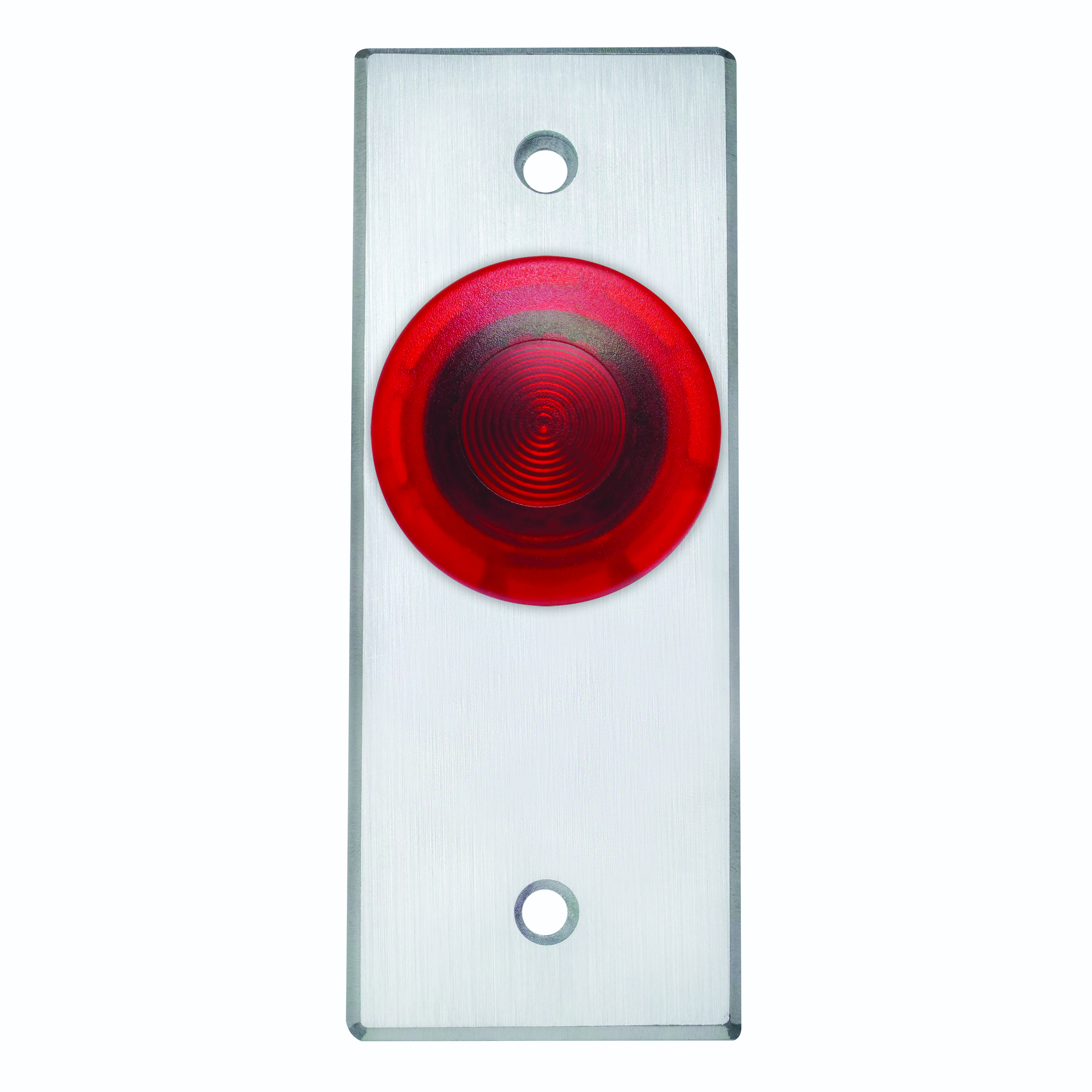

NARROW PLATE, 12/24V
|
|
CM-3100R |
|
RED SPRING RETURN BUTTON, N/O, MOMENTARY
|
UL Switch Component
|
|
|
|
CM-3110R |
|
RED SPRING RETURN BUTTON, N/C, MOMENTARY
|
UL Switch Component
|
|
|
|
CM-3120R |
|
RED SPRING RETURN BUTTON, N/O & N/C, MOMENTARY
|
UL Switch Component
|
|
|
|
CM-3130R |
|
NARROW FACE PUSH/PULL BUTTON, N/O, MAINTAINED,12V
|
UL Switch Component
|
|
|
|
CM-3140R |
|
NARROW FACE,RED PUSH/PULL BUTTON, N/C, MAINTAINED,12V
|
UL Switch Component
|
|
|
|
CM-3150R |
|
NARROW FACE,RED PUSH/PULL BUTTON, N/O & N/C, MAINTAINED,12V
|
UL Switch Component
|
|
SINGLE GANG, 12/24V
|
|
|
CM-3000R |
|
RED SPRING RETURN BUTTON, N/O, MOMENTARY
|
UL Switch Component
|
|
|
|
CM-3010R |
|
RED SPRING RETURN BUTTON, N/C, MOMENTARY
|
UL Switch Component
|
|
|
|
CM-3020R |
|
RED SPRING RETURN BUTTON, N/O & N/C MOMENTARY
|
UL Switch Component
|
|
|
|
CM-3030R |
|
RED PUSH/PULL BUTTON, N/O, MAINTAINED
|
UL Switch Component
|
|
|
|
CM-3040R |
|
RED PUSH/PULL BUTTON, N/C, MAINTAINED
|
UL Switch Component
|
|
|
|
CM-3050R |
|
RED PUSH/PULL, N/O & N/C, MAINTAINED
|
UL Switch Component
|
|
|
|
| CM-XXXXR |
|
add R suffix for Red
|
|
| CM-XXXXG |
|
add G suffix for Green
|
|
|
|
|
Engraving Options
|
3 of 6
click for more
click for fewer
|
|
english
|
| CM-xxxxH |
|
Add H to product # for wheelchair symbol engraved (in white)
|
|
| CM-xxxxE |
|
Add E to product number for EXIT laser engraved in WHITE
|
|
french
|
| CM-xxxxES |
|
CM-XXXX-ES Add ES to product # for the words EXIT and SORTIE engraved (in white)
|
|
| CM-xxxxS |
|
Add S to product # for SORTIE engraved (in white)
|
|
spanish
|
| CM-xxxxESA |
|
Add ESA to product # for the words EXIT and SALIDA engraved (in white)
|
|
| CM-xxxxSA |
|
Add SA to product # for SALIDA engraved (in white)
|
|
|
|
|
